12PDT (4-Pole, Double-Throw) toggle switches are essential components for controlling complex electrical circuits, commonly found in automotive dashboards, industrial control panels, and custom electronics projects. They allow for simultaneous switching of four independent circuits between two positions. Products were evaluated based on their specific pole/throw configuration, current/voltage ratings, stated durability, user reviews, and feature analysis.
The SINORS KN3C-402 stands out for its heavy-duty performance, superior durability with bakelite construction, and included waterproof cap, making it robust for demanding applications.
Search on Amazon
mxuteuk 2pcs MTS-402 12 Terminal 2 Position 4PDT Mini Miniature Toggle Switch Car Dash Dashboard ON/ON 5A 125V 2A 250V
$8.99
The mxuteuk MTS-402 provides a reliable 4PDT ON/ON functionality in a miniature form factor, suitable for general-purpose applications where space and cost are primary considerations.
View on AmazonWith its robust bakelite construction, 20A rating, and emphasis on over 10,000 cycles of operation, the SINORS KN3C-402 is designed for long-term, intensive use.
Search on Amazon
- Package Content : 2Pcs x Mini Miniature Toggle
- Mounting hole diameter: 6mm / 0.23" ; Total Size(Approx) : 12.5x23.3x32mm/0.49" x 0.91" x1.3"(L*W*H);
- Pin Number : 12 Pins; Position : 2 Positions ON/ON;Type : 4PDT;Power: 5A 125VAC / 2A 250VAC
- The product has a 2-year warranty service；Mechanical life: more than 50.000 cycles. Electrical life: more than 10, 000 cycles
- Miniature toggle switches suitable for panel mounting with a reliable action making them suitable for a wide range of applications.

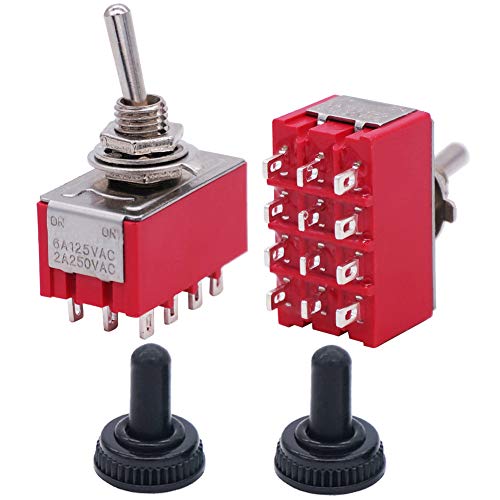

- Product Name: Toggle switch;Type: ON/ON;Connector type:4PDT 12 terminal pin
- Rated Voltage & Current : AC 6A/125V 2A/250V;Mounting hole diameter: 6mm/0.23"
- Overall size:23.5mm x 13mm x 34mm/0.9"x0.5"x1.3"(L*W*T)
- Easy to install which features mini body and it's widely used to control operation of many small power electronic projects.
- Package content: 2 x mini Toggle switches + 2 x Waterproof Cap(Each switch comes with two hex nuts, a flat and a locking washer)

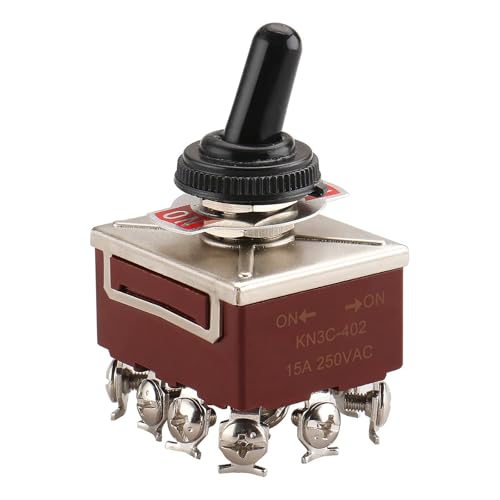

- Product Name: Toggle switch; Terminal Type: 4PDT; Circuitry:ON-OFF-ON ; Number of terminals: 12 Screw Terminals.
- Material: Plastic and metal; Rated Voltage & Current : 15A 250V AC, 10A 380V AC; Operating temperature: -40...85°C.
- Silver Contact: Make contact reliable for longer life.Mechanical life: more than 80,000 cycles. Electrical life: more than 12, 000 cycles;
- Total Size(Approx) :3.3x 3.7x 6cm/ 1.3" x 1.45" x2.4"(L*W*H) Easy to install: Mounting hole diameter: 12mm. Each of the terminals has a machine screw for quick connections, but also easy to be soldered.
- Package content: 1pcs x Toggle switch +1pcs x Waterproof Cap Cover
- 【Durable 12V Toggle Switch】 With a 2-pin SPST ON/OFF design, it's easy to operate—simply flip the handle to switch power on or off. this toggle switch 12v is built for performance and reliability. Ideal for use as a marine toggle switch or...
- 【Waterproof Protection】 Each waterproof toggle switch comes with a sealed rubber boot cap to resist water, dust, and debris. perfect for marine switches for boats, trucks, RVs, and outdoor equipment exposed to harsh environments
- 【Heavy Duty Performance】 This heavy duty toggle switch supports a wide range of high-power electrical setups. rated 30A at 12V DC, 20A at 125V AC, and 15A at 250V AC, long mechanical life over 100,000 cycles ensures stable operation over time
- 【Quick and Easy Installation】 Designed with a standard 12mm (0.47") mounting hole and screw terminals,the brass terminals provide superior conductivity and corrosion resistance. this 12v toggle switch allows for secure wiring in minutes
- 【Wide Applications】 These waterproof toggle switches are widely used in cars, trucks, boats, yachts, and off-grid DIY setups. Ideal for controlling lights, fog lamps, chassis lights, or any 12v accessory system
- Product Features: This waterproof toggle switch made of metal and bakelite, with a waterproof cover, not only has an exquisite appearance and solid structure, but is also effectively weatherproof and improves the quality of the equipment.
- Product Specification: This marine toggle switch features the SPST 2 pin ON/Off design, easy to operate switch, rated current 30A 12VDC; 15A 250VAC; 20A 125VAC, heavy duty type.
- Easy Installation: The toggle switch assembly hole is 0.47" (11.8mm), equipped with spade terminals, each terminal has convenient screw wiring and is 0.9mm thick for fast and secure installation.
- Long Life: Toggle switch 12v mechanical life of over 100,000 cycles and electrical life of over 10,000 cycles ensures long term stable performance.
- Widely Used: This spst toggle switch is widely used in automobiles, boats, campers and additional electrical equipment inside and outside, such as lights, chassis lights, fog lights, roof lights, etc, to enhance the ease of use and flexibility.
- Features: "O I" marked on black button 12V Rocker Switch with 5 sets of wires(#187 Lock Terminals on end) for switch easy connection.
- Material: The KCD1 Small round rocker switch is made of nylon PA66. The terminals are made of brass with silver plated.
- Function: The ON/OFF rocker switch is 2 pin SPST design (single pole single throw) ON OFF. The rating is 10A 120V AC and 20A 12V DC.
- Installation: The mounting hole size of this Mini 12 Volt rocker switch is 0.787 inches (20mm). It adopts snap-in design, easy to install.
- Application: The Circle round rocker toggle switch is widely applied to Car Automotive RV Household appliances, etc.
- Feature: The SPST toggle switch waterproof is made of metal and bakelite Material. Delicate appearance with strong Construction. Look chic and high-end on your equipment.
- Function: This toggle switch with 2 pin SPST design (single pole single throw), easy to turn ON OFF. The rating is 30A 12VDC; 15A 250VAC; 20A 125VAC, Heavy Duty Version.
- Installation: Mounting hole size is 0.48 inches (12.2MM), with #250 Spade Terminals(6.35X0.8mm) for quick connection.
- Waterproof Cap: Each automotive toggle switch will come with a waterproof boot cap, which makes it a waterproof toggle switch.
- Application: This 2 pin ON OFF toggle switch is widely applied to various additional electric equipment inside and outside Auto Car Marine Boat, such as lights, chassis lamp, fog lamps, dome light, etc.
- Premium Materials: Crafted from metal and flame-retardant Bakelite, this toggle switch offers a refined look and robust construction. Why it’s made this way is to solve the problems of physical damage and fire risk. The brass terminals provide strong...
- Waterproof Protection: This on off switch features a tightly sealed rubber waterproof cover that effectively blocks moisture, dust, and debris. This design directly addresses what a user fears most in marine or automotive applications: switch failure due...
- Heavy Duty Performance: This marine-grade heavy-duty 12v switch supports multiple high-power configurations. What problem it solves vs alternatives is the risk of failure under high current. With a mechanical life exceeding 100,000 cycles, it delivers...
- Easy Installation: With 0.47-inch mounting holes, fork terminals, and screw connections, This toggle switch 12v ensures quick, secure installation. The red (positive) and black (negative) markings solve wiring errors, which is especially useful in tight...
- Widely Used: This waterproof switch offers versatile applications across automobiles, trucks, boats, yachts, and RVs. It enables flexible control of interior/exterior lighting, undercarriage lights, fog lights, roof lights, and other 12V accessory...
- Product Features: This waterproof toggle switch is made of metal and bakelite, with weatherproof cover not only has exquisite appearance and sturdy construction, but also can effectively protect and enhance the grade of equipment
- High performance: This waterproof toggle switch adopts SPST 2pin ON/Off design, easy to operate switch, rated current 30A 12VDC;15A 250VAC;20A 125VAC HeavyDuty
- Simple Installation: The mounting holes are 0.47 inches (11.8mm) in diameter, each terminal has convenient screw wiring and a terminal thickness of 0.9mm to ensure fast and secure installation
- Long service life: Mechanical life exceeds 100,000 cycles and electrical life exceeds 10,000 cycles, ensuring long-term stable performance
- Widely Used Scenarios: 12V toggle switches are widely used in automobiles, boats, campers and additional electrical equipment inside and outside the car, such as lights, chassis lights, fog lights, roof lights, etc, to enhance the convenience and...
- ON OFF Toggle Switch: This is an SPST toggle switch, 2 pin switch, 2 position design. When turn the automotive toggle switch ON, it will stay at ON position until manually switch it off.
- Rating: 30A 12V DC; 15A 24V DC; 20A 125V AC; 15A 250V AC, heavy duty marine toggle switch 12v design.
- Mounting Hole Size: The mounting hole size of this 12 volt on off toggle switch is 1/2" (12mm).
- Feature: This 12v toggle switch comes with screw terminal. There is a gap on this 2 position toggle switch to fix the ON/OFF plate and prevent the plate from spinning on the switch. In addition, for becoming waterproof toggle switch 12v marine, this 2 way...
- Waterproof: The marine toggle rocker switch can reach IP65 waterproof rating after installing the rubber boot cover, suitable for automotive, car, truck, boat, yacht, DIY projects, household appliances, etc.
This article is part of our complete guide Plumbing & Electrical — browse all our comparisons and buying guides.
Last update on 2026-07-09 / Affiliate links / Images from Amazon Product Advertising API
How to Choose the Best 12PDT Toggle Switches
Understanding Switch Configuration: 4PDT vs. Others
When selecting toggle switches, the primary distinction lies in their pole and throw configuration. True 12PDT switches, such as the mxuteuk MTS-402 and Twidec MTS-402-MZ, are 4-Pole, Double-Throw, meaning they can control four separate circuits simultaneously, each switching between two positions (ON/ON). In practice, this translates to 12 terminal pins. However, the market also offers switches like the Joinfworld, which is DPDT (Double-Pole, Double-Throw) with 6 pins, or the Covxyorg, which is SPST (Single-Pole, Single-Throw) with 2 pins. It is critical to match the switch configuration to the specific circuit requirements; using a DPDT or SPST where a 4PDT is needed will not provide the necessary circuit control, while using a 4PDT for simpler tasks might be overkill.
Current and Voltage Handling Capabilities
The operational safety and longevity of a toggle switch are heavily dependent on its current and voltage ratings. Switches are typically rated for both AC and DC applications, with different maximums for each. For instance, the mxuteuk MTS-402 is rated at 5A 125VAC / 2A 250VAC, indicating its suitability for lower power applications. In contrast, the SINORS KN3C-402 boasts a 20A rating, suggesting it can handle significantly higher loads, making it appropriate for heavy-duty automotive or industrial uses. Similarly, the Joinfworld switch is rated at 30A 12V DC, which is crucial for high-current 12V systems. Always ensure the switch's ratings exceed the maximum expected load of your circuit to prevent overheating and premature failure.
Durability, Materials, and Environmental Protection
The construction materials and environmental features significantly impact a toggle switch's lifespan and reliability. Many switches, like the SINORS KN3C-402, feature heat-resistant bakelite, which users report contributes to superior durability and consistent operation over thousands of cycles. For outdoor or harsh environments, the inclusion of a waterproof cap is a critical feature, as seen on the SINORS, Twidec, Covxyorg, and Joinfworld products. These caps protect against moisture, dust, and debris, preventing internal corrosion and maintaining electrical integrity. Miniature switches, such as those from mxuteuk and Twidec, often prioritize compact size, while heavy-duty options from SINORS prioritize ruggedness and resistance to wear and tear.
Mounting and Form Factor Considerations
The physical dimensions and mounting requirements are practical considerations for integration into control panels or enclosures. Miniature toggle switches, like the mxuteuk MTS-402 and Twidec MTS-402-MZ, typically feature a 6mm mounting hole diameter and a compact overall size, ideal for tight spaces or small dashboards. Larger, heavy-duty switches, such as the SINORS KN3C-402 and Joinfworld, often require a larger 12mm mounting hole. The choice between screw terminals (Joinfworld) and solder terminals (common on miniature switches) also influences ease of installation and wiring flexibility, with screw terminals often favored for field serviceability.
Pros & Cons
mxuteuk 2pcs MTS-402 12 Terminal 2 Position 4PDT Mini Miniature Toggle Switch Car Dash Dashboard ON/ON 5A 125V 2A 250V
Pros
- True 4PDT configuration with 12 pins for complex circuit control.
- Compact, miniature design suitable for space-constrained applications.
- Reliable ON/ON switching action for continuous circuit engagement.
Cons
- Lower current rating (5A) may not be suitable for high-power loads.
- Does not include a waterproof cap, limiting use in exposed environments.
B0FGCM8RGW
Pros
- Heavy-duty construction with heat-resistant bakelite for enhanced durability.
- High current rating (20A) supports demanding electrical setups.
- Includes a waterproof cap, offering protection against moisture and dust.
Cons
- Larger mounting hole (12mm) may not fit all miniature applications.
- Being an ON/ON switch, it lacks an Off position for complete circuit disengagement.
Joinfworld Momentary Toggle Switch 12V DC 3 Way 30 Amp DPDT 6 Pin (ON)-Off-(ON) Waterproof Marine Toggle Switch 12 Volt Heavy Duty with Boot Cover Cap for Automotive Boat Auto Air Train - 4Pack
Pros
- Heavy-duty rating (30A 12V DC) for high-current automotive and marine uses.
- Momentary (ON)-Off-(ON) action provides flexible, temporary control.
- Includes a waterproof boot cover, enhancing resilience in harsh conditions.
Cons
- DPDT 6-pin configuration means it does not offer 4-circuit control like 12PDT switches.
- Momentary action is not suitable for applications requiring sustained ON states without continuous hold.
Common Mistakes to Avoid
Misinterpreting Switch Pole/Throw Configuration
A frequent error is assuming all toggle switches labeled 'heavy-duty' or 'automotive' are 12PDT. The term '12PDT' specifically refers to a 4-Pole, Double-Throw switch with 12 terminals. Products like the Covxyorg switch, which is SPST (2-pin), or the Joinfworld switch, which is DPDT (6-pin), are fundamentally different. Using a DPDT switch when a 4PDT is required will lead to insufficient circuit control, as only two circuits can be switched simultaneously instead of four.
Overlooking Current and Voltage Compatibility
Another common oversight is failing to match the switch's current and voltage ratings to the application's requirements. For instance, attempting to use a miniature switch rated for 5A 125V AC, like the mxuteuk MTS-402, in a circuit demanding 30A at 12V DC, as supported by the Covxyorg or Joinfworld switches, will inevitably result in switch failure, overheating, or even fire hazards. Always ensure the switch's maximum ratings surpass the circuit's maximum operational parameters.
Ignoring Environmental Protection Needs
Many users neglect the importance of environmental protection, leading to premature switch failure in adverse conditions. While some switches, like the Twidec MTS-402-MZ and SINORS KN3C-402, come with waterproof caps, others do not. Deploying a non-waterproof switch in an environment exposed to moisture, dust, or corrosive elements, such as marine or outdoor automotive applications, can cause internal short circuits, contact corrosion, and unreliable operation. Always select switches with appropriate ingress protection for the intended environment.
Incorrectly Choosing Switch Action (ON/ON vs. Momentary)
The specific action of a toggle switch is crucial for its intended function. Switches like the mxuteuk MTS-402 and Twidec MTS-402-MZ are 'ON/ON', meaning they maintain a connection in either of their two positions. In contrast, the Joinfworld switch is '(ON)-Off-(ON)' momentary, which means it only makes contact while held in position and returns to 'Off' when released. Using a momentary switch for an application requiring a sustained ON state, or vice-versa, will result in incorrect circuit behavior and user frustration.
