72PDT Toggle Switches, primarily referring to DPDT (Double Pole Double Throw) 6-pin, 3-position switches, are essential components for controlling two separate circuits simultaneously in various applications. They are commonly found in marine, automotive, and industrial settings for tasks like motor reversal or power selection. Products were evaluated based on current and voltage ratings, build quality, durability, environmental protection features, and terminal types, alongside user reviews and feature analysis.

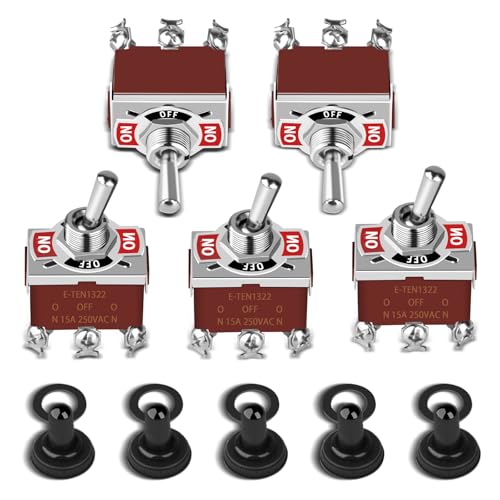

5Pack Toggle Switch, 6 Pin ON-Off-ON 12V DC 30A/250V AC 15A DPDT Marine Waterproof Toggle Switch with Boot Cap Cover, Switch for Car Auto Boat
$11.99
Offers robust 30A 12V DC and 15A 250V AC ratings with a marine waterproof design, suitable for demanding applications.
View on Amazon
Nilight 5 Pack 6Pin Heavy Duty Rocker Toggle Switch 15A 250V 20A 125V DPDT 6 Pin ON/Off/ON Switch Metal Bat Waterproof Boot Cap Cover
$10.99
Provides competitive heavy-duty specifications and waterproof features, offering solid performance without premium pricing.
View on Amazon
DMWD 2pcs Heavy Duty Rocker Toggle Switch 0-250V 15A DPDT 6 Pins 3 Positions ON-Off-ON Latching with Waterproof Boot Cap pre-Wired Cables for Auto Car Truck Boat Marine
$11.99
Features Bakelite housing and pre-wired cables, enhancing durability and simplifying installation for a more refined user experience.
View on Amazon
- Product Name: Rocker Toggle switch; Type: Latching ON-OFF-ON DPDT 6 pins 3 positions; Rating: 15A 250VAC
- High Quality: Bakelite Housing makes the Switch Durable and Shiny; Brass material and silver contact make mechanical life more than 500,000 cycles and electrical life more than 10,000 cycles
- Installation: Mounting hole size is 0.47 inches (12MM)；Each switch is equipped with 6pcs 20cm/0.79" cables for easy wiring
- Application: Widely used in electric equipments inside and outside Auto Car Marine Boat, such as lights, chassis lamp, fog lamps, dome light, etc.
- Package Included: Toggle Switch*2+Waterproof Cap*2+cable*12
- Perfect for industrial equipment or emergency lighting
- Specifications: 10 A 277 V AC / 20 A 125 V AC
- 75°C max. temperature rating
- Terminal Type: Screw
- Standard nut size, 15/32 - 32 inch.
- Type: This momentary toggle switch is a 3 pin SPDT 3 way toggle switch, the function of this 12v toggle switch is (ON)/OFF/(ON).
- Rating: 20A 12V DC; 20A 125V AC; 15A 250V AC. This momentary switch is a heavy toggle switch 12v.
- Installation: The mounting hole size of this 12 volt toggle switch is 12mm (0.47 inch). Each terminal of the 12v momentary switch has a machine screw for quick connections.
- Waterproof: This 3 position toggle switch will come with a toggle switch cover to achieve waterproof function. The waterproof toggle rocker switch can reach IP65 waterproof rating after install the boot cap.
- Application: This marine toggle switch is suitable for automotive, car, truck, boat, yacht, DIY projects, household appliances, etc.

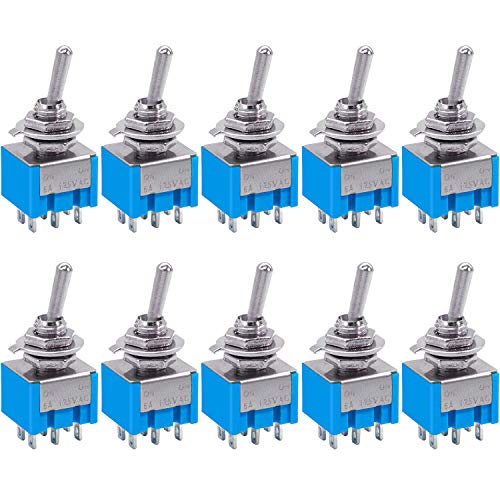

- Product Name : Toggle Switch;Model No. : MTS-202;Rated Voltage & Current : AC 125V, 6A
- Pin Number : 6 Pins;Position : 2 Positions(ON/ON);Type : DPDT
- Mounting Hole Diameter : 5.8mm / 0.23";Body Size(Approx.) : 13 x 12.8 x 10mm / 0.5" x 0.5" x 0.4"(L*W*T)
- Total Height : 33mm / 1.3";Material : Plastic, Metal
- Weight : 67g;Package Content : 10 Pcs x Toggle Switch
- Package Content : 4Pcs x Mini Miniature Toggle
- Mounting hole diameter: 6mm / 0.23" ; Total Size(Approx) : 18.4x12.5x32mm/0.72" x 0.49" x1.3"(L*W*H);
- Pin Number : 9 Pins; Position : 2 Positions ON/ON;Type : 3PDT;Power: 5A 125VAC / 2A 250VAC
- The product has a 2-year warranty service；Mechanical life: more than 50.000 cycles. Electrical life: more than 10, 000 cycles
- Miniature toggle switches suitable for panel mounting with a reliable action making them suitable for a wide range of applications.
- Product Name : Toggle Switch;Type: SPST(Latching);Position :2(ON-OFF)
- Thread Diameter : 11.6mm / 0.46";Voltage & Current : AC 125V 6A/250V 3A, DC 12V 10A; Mechanical life is 50,000 (times)
- Main Body Size : 25 x 15mm / 0.98" x 0.6"(L*W);Overall Height : 37mm / 1.5";Rocker arm length：11.5mm/0.45";Length of connecting line: 131mm/5.2"
- Material : Metal, Plastic;Color : Black
- Package Content : 2 x Toggle Switches
- 【ON/Off Toggle Switch】Product Name: Toggle Switch; Type: SPDT(Latching); Size : 13 x 10 x 33mm / 0.5 x 0.4 x 1.3in(L*W*H); Position: 2(On/OFF).
- 【Durable and reliable in performance】Power: AC 125V 6A; Pin Number: 2 Pins; Material: Metal, Plastic; Mounting hole diameter: 6mm / 0.23in; Electrical life: more than 50, 000 cycles.
- 【Plug-and-Play Installation】These 2 Pin 2 Position Toggle Switch function perfectly without accessories, while included accessory offer added protection/fixing.
- 【Wide Application】Toggle Switch Widely used for PCB Board, Breadboard, DIY Car Dash Dashboard Electronic Equipment,etc.
- 【Pro-Grade Storage Solution】 All 12Pcs SPST Mini Toggle Switch are packed in pressure resistant plastic boxes - Easy to find and use quickly.
- Perfect for industrial equipment or emergency lighting
- Specifications: 10 A 277 V AC / 20 A 125 V AC
- 75°C max. temperature rating
- Terminal Type: Screw
- Standard nut size, 15/32 - 32 inch.
- Product Type: This is a dpdt 6 pin 3 position momentary toggle switch. The type of the 12v marine toggle switch is (ON)-OFF-(ON)
- Rating: 30A 12V DC, 15A 250V AC, heavy duty toggle switch 12v design
- Easy to Install: The mounting hole diameter: 12mm/0.47". Each Toggle Switch has screw terminals for quick connection
- Waterproof & Durable: Each 12V Marine Toggle Switch comes with a waterproof cap which can reach IP65 waterproof. This toggle switch is made of metal and plastic, with thickened handles and flame retardant housing for durability
- Wide Application: Package includes: 4pcs momentary toggle switch & 4pcs waterproof boot cap cover. Joinfworld toggle switch is suitable for automotive, truck, boat, yacht, household appliances, etc.
- Product Name: Toggle switch；Material: Plastic And Metal；Solid connection switch with waterproof rubber cap, more convenient to operate
- Connector type: DPDT 6 Pin 3 Position ON-OFF-ON ；Rated Voltage & Current :16(10)A 250V AC；The waterproof rubber cover can prevent all toggle switches from being affected with damp and dust when being applied to ships, yachts, boats and other marine
- Toggle Switch Total Size: 59mm x 32.7mm x 19.5mm/2.3"x1.28"x0.77"（L*W*H);Mounting hole diameter: φ12mm；Spade Terminal Diameter：6.4mm
- Toggle switches have connecting wires and are easy to install.Mechanical life: more than 50.000 cycles. Electrical life: more than 10, 000 cycles.
- Package Content: 3 x Rocker Toggle Switch + 3 x Waterproof Boot Cap + 18 x Connection line
This article is part of our complete guide Plumbing & Electrical — browse all our comparisons and buying guides.
Last update on 2026-07-09 / Affiliate links / Images from Amazon Product Advertising API
How to Choose the Best 72PDT Toggle Switches
Current and Voltage Handling Capabilities
When selecting a 72PDT toggle switch, the primary consideration is often its ability to handle specific current and voltage requirements. Switches like the COROTC 5Pack Toggle Switch are rated for both high DC (30A 12V DC) and AC (15A 250V AC) loads, making them versatile for different power systems. In contrast, the Gardner Bender GSW-16 specifies 20 A/125V AC, indicating it's optimized for certain AC applications. It's crucial to match the switch's rating to the circuit's maximum load to prevent premature failure or safety hazards. Overlooking these specifications can lead to inefficient operation or component damage.
Durability and Environmental Protection
The operational environment significantly dictates the necessary durability and protection features of a toggle switch. For marine or outdoor use, waterproofing is paramount; products from Nilight and DMWD include waterproof boot caps, which are vital for protection against moisture and dust ingress. The COROTC switch also emphasizes a 'marine waterproof' design. Materials like the 'hard oak shell' (likely a robust composite) mentioned by COROTC, or the Bakelite housing in the DMWD switch, contribute to mechanical resilience. Switches should also offer a sufficient mechanical and electrical life cycle, as demonstrated by Nilight's specifications exceeding 50,000 mechanical cycles.
Terminal Type and Installation Convenience
Installation methods vary, and the terminal type plays a significant role in ease of wiring. The Gardner Bender GSW-16 utilizes screw terminals, which are robust and provide a secure connection, often preferred in industrial settings where vibration might be a concern. Conversely, some switches, like the DMWD Heavy Duty Rocker Toggle Switch, come with pre-wired cables, significantly simplifying the installation process for users who prefer a plug-and-play approach. For standard 6-pin DPDT switches, blade terminals are common, requiring crimped connectors or soldering. Evaluating the terminal type against your wiring expertise and tools is essential for a smooth setup.
Switch Functionality: Latching vs. Momentary
A critical distinction among toggle switches is their operational function: latching or momentary. Most 72PDT switches on this page, such as the COROTC and Nilight offerings, are 'ON-Off-ON' latching types, meaning they maintain their position until manually switched again. This is suitable for applications requiring continuous power to a circuit. However, a switch like the DaierTek Waterproof Momentary Toggle Switch offers an '(ON)-Off-(ON)' momentary function, where the switch returns to the 'Off' position when released. This is typically used for temporary actions, like activating a horn or a specific motor function for a brief period. Choosing the correct function prevents unintended continuous operation or lack of necessary temporary activation.
Pros & Cons
5Pack Toggle Switch, 6 Pin ON-Off-ON 12V DC 30A/250V AC 15A DPDT Marine Waterproof Toggle Switch with Boot Cap Cover, Switch for Car Auto Boat
Pros
- Features high 30A 12V DC rating, suitable for heavy-duty automotive/marine applications.
- Includes a waterproof boot cap, enhancing durability in challenging environments.
- Equipped with all-copper pins and thickened metal parts for reliable conductivity and strength.
Cons
- The 'hard oak shell' description is unusual and may be a misnomer for a plastic compound.
- Specific mechanical or electrical life cycle data is not explicitly provided.
Nilight 5 Pack 6Pin Heavy Duty Rocker Toggle Switch 15A 250V 20A 125V DPDT 6 Pin ON/Off/ON Switch Metal Bat Waterproof Boot Cap Cover
Pros
- Offers a robust mechanical life of over 50,000 cycles, indicating long-term reliability.
- Comes with a waterproof rubber cap, providing essential protection against elements.
- Provides clear dual voltage ratings (15A 250VAC/20A 125VAC), covering various power needs.
Cons
- Material description is generic ('plastic and metal'), lacking specific material benefits.
- Mounting hole size is standard but may require specific drilling tools for installation.
DMWD 2pcs Heavy Duty Rocker Toggle Switch 0-250V 15A DPDT 6 Pins 3 Positions ON-Off-ON Latching with Waterproof Boot Cap pre-Wired Cables for Auto Car Truck Boat Marine
Pros
- Includes pre-wired cables, significantly simplifying the installation process for users.
- Features a Bakelite housing and silver contacts, suggesting enhanced durability and conductivity.
- Provides a clear ON-OFF-ON latching function, ideal for continuous circuit control.
Cons
- Only a 2-piece pack, which might be insufficient for larger projects.
- Specific DC current rating is not explicitly listed, only 15A 250VAC.
Common Mistakes to Avoid
Ignoring Current and Voltage Specifications
A common pitfall is installing a toggle switch without adequately checking its current and voltage ratings against the circuit's demands. For instance, using a switch rated for 15A 250V AC in a 30A 12V DC application, as seen with products like the COROTC, will likely lead to overheating and premature failure. Always verify that both the amperage and voltage capacities meet or exceed your system's requirements to ensure safe and reliable operation.
Underestimating Environmental Needs
Failing to select a switch with appropriate environmental protection for its intended location is another frequent error. For marine, automotive, or outdoor use, a non-waterproof switch will quickly succumb to moisture and debris. While products like Nilight and DMWD explicitly include waterproof boot caps, others, such as the Gardner Bender GSW-16, do not specify such protection, making them unsuitable for exposed conditions.
Confusing Latching with Momentary Functions
Incorrectly choosing between a latching (ON-Off-ON) and a momentary ((ON)-Off-(ON)) switch can lead to operational issues. If a circuit needs to remain activated until manually switched off, a latching type (like COROTC's ON-Off-ON) is necessary. Conversely, using a latching switch where a temporary activation is required, such as with DaierTek's momentary function, can result in components running continuously when they should not. Always confirm the required switching behavior before purchase.
Neglecting Terminal Type for Installation
The type of terminal can significantly impact installation ease and connection reliability. Some users might find screw terminals, as featured on the Gardner Bender GSW-16, more secure for specific applications, while others might prefer the convenience of quick-connect blade terminals or pre-wired options like those provided with the DMWD switches. Not considering the terminal type in relation to your wiring setup can lead to frustrating and time-consuming installation challenges.
