A time delay relay is a crucial component in many automotive systems, controlling the activation and deactivation of various circuits. Selecting the correct replacement ensures optimal performance and prevents potential electrical issues. This guide will help you navigate the options to find the best fit for your vehicle.
Automatic 10-Second Delay-On: Prevents high-draw accessories from engaging until the engine has finished cranking. Ideal for protecting sensitive electronics from voltage surges, battery strain, and power fluctuations during startup.
True SPDT Functionality: Features both Normally Open (87) and Normally Closed (87a) pins. Use it to delay a circuit from turning on or to have a circuit turn off automatically after 10 seconds.
Heavy-Duty 30A Rating: Rated for up to 30A switching. Note: For high-continuous loads (over 15-20A) or sensitive applications, it is recommended to use this as a trigger for a secondary high-amp power relay.
Broad Compatibility: A "drop-in" replacement for standard 5-pin automotive relays. Versatile enough for vehicles, heavy machinery, marine equipment, and specialized fluid or electrical systems.
Polarity Sensitive: Unlike standard mechanical relays, this unit contains an internal solid-state timer. Pin 85 must be connected to Ground and Pin 86 to the 12V Trigger for the timer to function.
Includes one 5-pin SPDT relay module box with a 10-second time delay turn on feature, reliable and efficient electrical connections
The time postpone (10 seconds) turn on SPDT 5-pin electrical relay unit, rated at 12V DC with a maximum of 30-40AMP, is ideal for most heavy duty electronic devices, light applications between 9-16V DC, with a wattage not exceeding 160W
The relay controller box measures 1.65" x 1.25" x 1.25" and features an approximately 10-second delay to turn on the light, making it ideal for most car/motorcycle retrofit lights without a switch or for those wanting to delay turn-on time to protect the...
Perfect for power management, this relay harness is ideal for applications like high wattage horns drawing power directly from the battery to prevent excessive load on the vehicle's existing wiring system and ensuring safe, easy on/off operation
Installation tip: directly plugs into most 4-pin or 5-pin relay sockets replacing conventional realy unit, and since the delay relay is polar sensitive, if it doesn't trigger the light, simply flip the input wires around (see demo video)
Function& Application : delay off or delay on 24v timer relay, preset machine start time or shut down time. It has a wide delay setting range from 0.1 seconds to 10 days, wide operating voltage AC DC 24V to 240V(50-60Hz), rated current of 10A. Output...
Indicator Button : the working status of the GRT EC economical adjustable delay relay is indicated by the LED indicator: the green LED indicator is always on (power on), the green LED indicator is off (power abnormality); the red LED indicator flashes...
Choice Materials : GRT8 EC delayed opening or delayed closing rail timer relay is made of industrial grade plastic and complies with CE, CB, and RoHS standards. It can work stably in different environments and protect your expensive equipment
Designed time relay : the GRT8-EC 10A dual function timer relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time. The Din rail...
Worry Free After-Sales Service : we provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any...

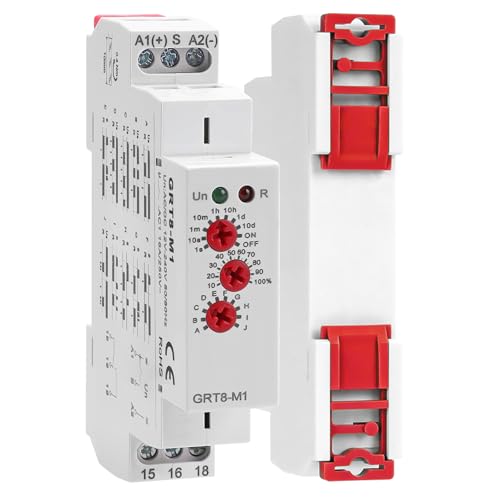

10 CONTROL DELAY FUNCTION: GRT8-M1 multifunctional timer relay, can preset machine start or stop time, 5 time functions controlled by power supply voltage, 4 time functions controlled by control input, 1 latching relay function. multi function time delay...
INDICATOR BUTTON: grt8 m1 ac dc 12-240v asymmetric cycle timer relay the working status of the delay relay is indicated by the LED : the green LED is always on (power on), the green LED is off (power abnormality); the red LED flashes (indicating the start...
HEAVY-DUTY MATERIAL:The time delay relay switch GRT8 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. adjustable on off delay timer sturdy design can accompany your expensive equipment for a...
DESIGNED FOR EASY INSTALLATION: The Din rail delay timer relay With super small volume measures 2.88 inches x 3.68 inches x 0.9 inches, electrical time delay module weighs approximately 2.7 ounces, and is installed on a 35mm Din rail
EXTENSIVELY UTILIZED: This minute timer relay GRT8-M1 meets the requirements of AC/DC 12V-240V, standard voltage levels such as 12V 24V 120V 240V, etc, plug in delay on off relay time delay relay can be used in Industrial automation, production line...
DEDICATED ENGINEERING SUPPORT SERVICES: If you have any questions about mini timer time delay relay installation or use, or if you encounter any problems during use, please feel free to reach up to Sezbaifles at any time. Please check the instructions and...
Operating Voltage: DC 12V; Quiescent Current: 5.5mA; Max. Load Voltage: DC 28V or AC 125V; Max. Load Current: 10A
Multifunction: 18 programmable working modes, on/off delay, infinite/finite loop, with/without high level voltage trigger, you can select the mode as needed; Delay time range from 0.1s to 270h.
No Hassle: All options settings could be saved automatically, the content will not be lost even power down; Reverse protection, avoid burning down the module as connecting the wrong terminals.
Designed Enclosure: The metal is customized for the timer module, cuts for every terminal block, display, press button and LED, provides enough protection, as well as convenient for you to use.
Applications: This module works as a switch with time delay on and off function, highly recommended for car circuit modification, LED lights, DC motors, pump and other electronic control systems.
Perfect for PLC digital outputs and sensor (NPN/PNP) signals that provide a positive voltage pulse.
Last update on 2026-06-17 / Affiliate links / Images from Amazon Product Advertising API
How to Choose the Best Automotive Replacement Time Delay Relays
Understanding Time Delay Relays
Automotive time delay relays, also known as electronic timers or interval relays, are designed to activate or deactivate a circuit after a specific period. They are commonly used for functions like interior lights, power windows, intermittent wipers, and cooling fans. Understanding the specific function in your vehicle is the first step to selecting the right replacement.
Key Features to Consider
Functionality: Determine if you need a relay that delays activation, delays deactivation (like a "keep alive" function), or cycles on and off.
Voltage and Amperage Rating: Ensure the replacement relay matches or exceeds the original unit's voltage (typically 12V for cars) and amperage requirements to handle the electrical load safely.
Pin Configuration: Relays come with different numbers and arrangements of pins (e.g., 4-pin, 5-pin). Verify that the pin layout matches your vehicle's socket to ensure proper connection.
Durability and Build Quality: Look for relays made from high-quality materials designed to withstand the harsh automotive environment, including temperature fluctuations and vibrations.
Terminal Type: Ensure the terminals are compatible with your vehicle's wiring harness connectors.
Installation and Compatibility
While many time delay relays are plug-and-play, it's essential to confirm compatibility with your vehicle's make, model, and year. Consulting your vehicle's service manual or a wiring diagram can help identify the correct part number and specifications. If you're unsure about installation, professional assistance is recommended to avoid damage to the electrical system.
Choosing the Right Type
There are several types of time delay relays, including:
On-Delay Relays: Activate the circuit after a set delay.
Off-Delay Relays: Keep the circuit active for a set delay after the trigger signal is removed.
Interval Timers: Cycle the circuit on and off at set intervals.
Matching the relay's timing function to the original component's purpose is critical for correct operation.
Comparison Tips
Always verify the original relay's part number before purchasing a replacement.
Read product descriptions carefully to confirm voltage, amperage, and pin configuration.
Check customer reviews for insights into the relay's performance and longevity in similar applications.
Consider relays from reputable brands known for automotive electrical components.
Frequently Asked Questions
What is a time delay relay used for in a car?
A time delay relay controls the operation of a circuit for a specific duration. Common uses include delayed interior lighting, power window operation, and intermittent wiper functions.
How do I know if I need to replace my time delay relay?
Symptoms of a failing relay include malfunctioning components like lights not turning off, power windows not working correctly, or wipers operating erratically. If a system dependent on a timer is not functioning as expected, the relay might be the issue.
Can I use a relay with a higher amperage rating than the original?
Yes, using a relay with a higher amperage rating is generally safe and can even provide an added layer of protection. However, ensure the voltage and pin configuration are identical.
Are all time delay relays interchangeable?
No, time delay relays are not interchangeable. They differ in their timing functions (on-delay, off-delay), voltage, amperage, and pin configuration, which must match the vehicle's requirements.
What happens if I install the wrong type of time delay relay?
Installing the wrong relay can lead to improper operation of the controlled system, potential damage to the vehicle's electrical components, or even create a safety hazard.
Do I need special tools to replace a time delay relay?
Typically, replacing a time delay relay does not require specialized tools. It usually involves locating the relay, unplugging the old one, and plugging in the new one, though some may require minor panel access.
