Commercial Touch Bar Devices are critical components for ensuring safe and efficient egress in various public and commercial settings, including offices, educational institutions, and retail spaces. They are designed to facilitate quick exit during emergencies while maintaining security. Products were evaluated based on material durability, installation compatibility, activation mechanisms, user reviews, and feature analysis.

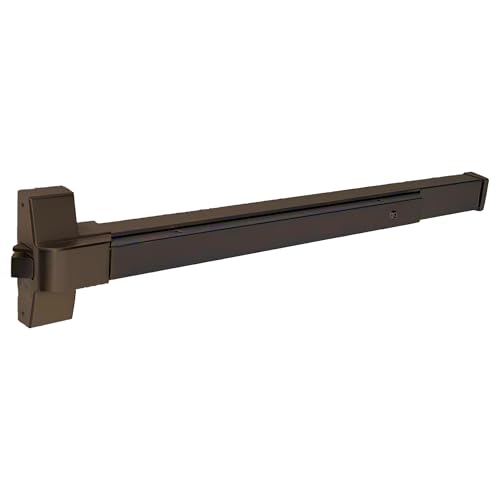

Brixwell Touch Bar Exit Device, Extruded Anodized Aluminum, Bronze Finish, 32-11/16" Length, 3-17/32" Latch Hole Spacing, 2-3/8" Touch Bar Hole Spacing, 2-5/8" Latch Plate Hole Spacing
$214.50
This Brixwell device offers a robust extruded anodized aluminum construction and standard dimensions suitable for a wide range of commercial applications.
View on Amazon
Global Door Controls 36 in. Aluminum Touch Bar Exit Device
$101.99
The Global Door Controls device provides a straightforward aluminum design that typically serves as a cost-effective solution for standard exit requirements.
View on Amazon
Securitron TSB-CL Touch Sense Bar, Clear, 36", Clear
$345.93
The Securitron TSB-CL stands out with its advanced touch-sense activation, lack of mechanical movement, and field-cuttable design for enhanced flexibility and longevity.
View on Amazon
- Overall Length Is 31" Fits Doors 30" thru 36" Wide - Not For Use On Glass Doors
- This crash bar is reversible and will fit either right or left hand doors. Rated for commercial use this push bar panic exit device is suited for use in office buildings, retail spaces and hotels.
- The Dynasty Hardware Grade 2 Heavy Duty Commercial Rim Exit Device For 30 thru 36" wide doors can be cut to size. Aluminum Finish. Suitable for both wood or metal door applications. Easy Installation. Excellent Quality Panic Hardware. Strike Plate...
- Limited - Lifetime Factory Warranty
- Dynasty Hardware 500 Series Panic Device With Dogging Feature
- Grade 1 Certified Assurance: UL Listed panic hardware for exit door applications; ADA approved for high-traffic commercial spaces. Includes 9V battery-powered alarm and removable shut-off key for emergency escape access.
- Instant Building Egress: The Fortstrong 1550-A commercial door push bar door locks help to prevent unauthorized use by sounding a loud warning when activated; provides immediate emergency door lock release during critical situations.
- Universal Door Compatibility: The 1550-A push door handle fits wood, metal, and composite doors; supplied with reversible roller striker and shim for fully adjustable installation on various interior door types and thicknesses.
- Simple DIY Installation: The Fortstrong Panic door push bar commercial kit includes detailed fitting template, thru bolts, fixing screws, and exclusive video guide; no general contractor needed for professional-quality setup
- Complete Panic Bar Kit: The complete door bar security system. Includes alarm stickers, roller strike, and all mounting hardware. Perfect for commercial and industrial use in hotels, offices, warehouse, hospitals, government buildings, restaurants and...
- APPLICATIONS - This wide stile device is reversible for left-or right-handed doors. Can be adjusted with a dogging device to be constantly open. Adjustable roller strike and shim provided for fine adjustments.
- MEASUREMENTS - Fits doors 36” to 42” wide out of the box and can be field sized to fit 28"-35" wide. Features a deadlocking latch bolt with 5/8” projection.
- COMMERCIAL DURABILITY - Meets ANSI Grade 1 standards, is UL 305 compliant, ADA compliant and intended for high-traffic wood or metal doors.
- INSTALLATION - This exit device includes everything needed to install including printed instructions and template for the door. A roller strike, shim, filler plate, and dogging key are included.
- QUALITY YOU CAN TRUST - A global leader in security-related products and services, the Brink's name is synonymous with top quality products to keep you and your belongings safe.
- Latch: top pullman type, bottom bolt assembly
- Stainless steel finished
- Backset: 2-3/4-inch on 4 1/2-inch minimum stile width
- Recommended installation at 41-inch from finished floor to center of push rail
- Furnished with sheet metal and machine screws
- Standard feature of bar exit device
- Latch: top pullman type, bottom bolt assembly
- Aluminum finished
- Backset: 2-3/4-inch on 4 1/2-inch minimum stile width
- Recommended installation at 41-inch from finished floor to center of push rail
- Furnished with sheet metal and machine screws
- Standard feature of bar exit device
- Can be field cut to accommodate non-standard openings up to 48"
- Activates a DPST 2 Amp rated relay when touched (no mechanical movement) which will allow free egress, or initiates the delay on an exit delay timer
- Backup push button
- Operates on either 12 or 24VDC
- MagnaCare Lifetime Replacement Warranty
- Non-rated, Non-handed
- Extruded Pushpad
- Streamlined design includes flush-end cap for clean lines and a more attractive installation
- Stainless steel pushpad cover for a scratch-resistant surface
- Deadlocking Latchbolt
This article is part of our complete guide Tools & Home Improvement — browse all our comparisons and buying guides.
Last update on 2026-07-09 / Affiliate links / Images from Amazon Product Advertising API
How to Choose the Best Commercial Touch Bar Devices
Material and Finish Durability
When selecting a commercial touch bar device, the material and finish significantly impact its longevity and aesthetic integration. Devices constructed from extruded anodized aluminum, like those offered by Brixwell, are known for their exceptional strength, corrosion resistance, and ability to withstand high-traffic environments without showing significant wear. This material typically supports rigorous use and maintains its structural integrity over time. Finishes vary, with options such as bronze and stainless steel, as seen on Brixwell models, providing distinct visual appeals. A bronze finish often suits traditional or warmer interior designs, while stainless steel offers a modern, clean look. Other brands, such as CRL, offer painted carbon steel or satin anodized finishes, which can also provide robust protection and blend with specific door types, like aluminum doors. In practice, the choice of finish should align with both the building's aesthetic and the expected environmental conditions.
Installation and Sizing Compatibility
Proper installation is paramount for the reliable function of a commercial touch bar. Device length and specific hole spacings are critical considerations. For instance, Brixwell devices are precisely measured at 32-11/16" in length, with detailed latch hole, touch bar hole, and latch plate hole spacings provided. This level of detail is crucial for ensuring compatibility with pre-drilled doors or for precise new installations. Conversely, products like the Securitron TSB-CL offer a field-cuttable design, allowing the bar to be adjusted to accommodate non-standard openings up to 48 inches. This flexibility can be invaluable for unique door sizes, reducing the need for custom orders. For specific door types, CRL devices are designed specifically for medium and wide stile aluminum doors, emphasizing the importance of matching the device to the door's construction.
Activation Mechanism and Features
The method of activation and any supplementary features can greatly influence user experience and overall system security. Most commercial touch bars operate with a traditional mechanical push mechanism. However, advanced options exist, such as the Securitron TSB-CL, which utilizes touch-sense technology. This means the device activates a relay when touched, allowing free egress without any mechanical movement of the bar itself. Users report that this 'no mechanical movement' design can lead to extended product life due to reduced wear and tear. The Securitron model also includes a backup push button, providing an alternative egress method in case of power interruption or system failure. Another important feature is the minimum force release mechanism, found in devices like the CRL DL950A, which ensures the locking mechanism disengages with minimal effort, enhancing accessibility for all users.
Pros & Cons
Brixwell Touch Bar Exit Device, Extruded Anodized Aluminum, Bronze Finish, 32-11/16" Length, 3-17/32" Latch Hole Spacing, 2-3/8" Touch Bar Hole Spacing, 2-5/8" Latch Plate Hole Spacing
Pros
- Extruded anodized aluminum construction ensures robust durability and resistance to wear.
- Standard 32-11/16" length accommodates most common commercial door widths.
- Bronze finish offers a professional aesthetic suitable for various interior designs.
Cons
- Relies on a traditional mechanical exit mechanism, lacking advanced touch-sense features.
- Specific pre-drilled hole spacings (latch, touch bar, latch plate) may limit installation flexibility on non-standard doors.
Securitron TSB-CL Touch Sense Bar, Clear, 36", Clear
Pros
- Activates egress via touch-sense technology, eliminating mechanical movement for enhanced longevity.
- Field-cuttable design allows for custom sizing up to 48", providing significant installation adaptability.
- Includes a backup push button, ensuring reliable egress even in event of power loss or system malfunction.
Cons
- Requires electrical power (relay activation) which may increase installation complexity and cost.
- The 'clear' finish might not suit all aesthetic preferences or blend seamlessly with all door materials.
B00QL51DU4
Pros
- Specifically designed for medium and wide stile aluminum doors, ensuring proper fit and function.
- Features a minimum force release mechanism, enhancing user accessibility and ease of egress.
- Offers choice of satin anodized or painted carbon steel finishes, providing aesthetic options.
Cons
- Less detailed information on the primary construction material compared to other extruded aluminum options.
- Designed for specific door stile types, which might not be universally compatible with all commercial doors.
Common Mistakes to Avoid
Overlooking Door Stile and Material Compatibility
A common pitfall is failing to match the touch bar device to the specific door type. For instance, the CRL DL950A is explicitly designed for 'Medium and Wide Stile Aluminum Doors'. Attempting to install such a device on a narrow stile wooden or steel door will typically lead to improper fitment, compromised security, or costly modifications. Always verify the door's material and stile width against the device's specifications before purchase.
Disregarding Specific Device Lengths and Adjustability
Users often assume all touch bars are universally sized. However, devices like the Brixwell models feature a precise '32-11/16" Length', which is a fixed dimension. In contrast, the Securitron TSB-CL highlights its 'Can be field cut to accommodate non-standard openings up to 48"' feature. Not checking if the device's length is suitable for the door opening, or if it offers field-cutting capabilities, can result in needing to return the product or undertaking difficult, non-standard installations.
Misunderstanding Activation Technology
Another frequent error is assuming all touch bars operate identically. While many use a direct mechanical push, the Securitron TSB-CL utilizes a 'Touch Sense Bar' that 'Activates a DPST 2 Amp rated relay when touched (no mechanical movement)'. This implies an electrical connection and a different operational feel. Expecting a mechanical 'push' from a touch-sense device can lead to confusion during installation and use, and requires specific wiring considerations.
Ignoring Precise Hole Spacing Requirements
The detailed specifications provided for Brixwell devices, such as '3-17/32" Latch Hole Spacing' and '2-3/8" Touch Bar Hole Spacing', are not arbitrary. These measurements are critical for alignment with existing door preparations or for accurately drilling new holes. Neglecting to compare these precise spacings with the door's requirements can result in significant installation challenges, requiring extensive rework or making the device incompatible with the door.
