Drafting applique film serves as a crucial tool for professionals and students seeking to transfer various forms of media onto technical drawings and designs with precision. It is typically employed for integrating typed text, photocopies, or printed graphics directly onto plans, ensuring clarity and permanence. Products were evaluated based on material compatibility, durability, ease of positioning, and overall versatility in professional drafting environments, supplemented by feature analysis.
Chartpak DAF Drafting & Design Applique Film, 8.5" x 11", 100 Clear Sheets/Box (DAF8)
This Chartpak DAF film is specifically designed for transferring diverse media onto drawings, offering excellent compatibility with toner, ink, pencil, and pen.
Search on AmazonFILM;DRAFTING;PERMANENT
The Chartpak 'FILM;DRAFTING;PERMANENT' offers a straightforward, functional solution for basic drafting film needs, likely at an accessible entry point.

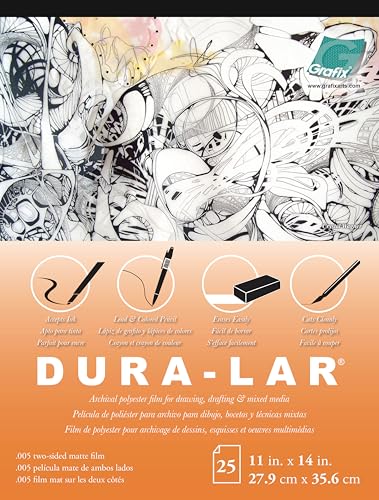

Search on AmazonGrafix Dura-Lar 0.005" Film, Matte, Translucent 11"x14", Economical Alternative to Drafting Film, Mylar and Acetate, Translucent Drawing Surface for Lead, Ink, Charcoal and Paint, Pad of 25 Sheets
Grafix Dura-Lar stands out with its exceptional durability, heat resistance, and versatile double-sided matte surface, making it suitable for demanding applications.
Search on AmazonLooking for the best Drafting Applique Film?
Discover now our comparison of the best Drafting Applique Film. It is never easy to choose from the wide range of offers. On the market, you will find an incalculable number of models, all at different prices. And as you will discover, the best Drafting Applique Film are not always the ones at the highest prices! Many criteria are used, and they make the richness and relevance of this comparison.
To help you make the best choice among the hundreds of products available, we have decided to offer you a comparison of the Drafting Applique Film in order to find the best quality/price ratio. In this ranking, you will find products listed according to their price, but also their characteristics and the opinions of other customers. Also discover our comparisons by categories. You won’t have to choose your products at random anymore.
- DURABLE: Grafix Dura-Lar Translucent Matte Film has the best features of Mylar & Acetate. It will not tear or discolor, easy to cut and die-cut. Durable and flexible for many art, craft, school and office projects
- HEAT RESISTANT: Made of translucent polyester, this frosted film can withstand temperatures from -94℉ to 300℉ (-70℃ - 150℃) making it perfect for use with embossing and heat tools.
- MANY APPLICATIONS: This matte film has a translucent drawing surface on two sides, ideal for drafting, drawing, stencils, layering and tracing. Will not tear,dicscolor and can be used on both sides.
- ERASES CLEANLY: Dura-Lar Matte Film erases cleanly. With excellent stability it will not tear or crack. Perfect for arts, crafts, drafting, patterns, lampshades and a more dependable alternative to vellum paper.
- 25 SHEET PAD: This pad contains 25 sheets of Dura-Lar Matte Film. Each sheet is 11"x14“ and 0.005” thick. Made in the USA. Packaging may vary.

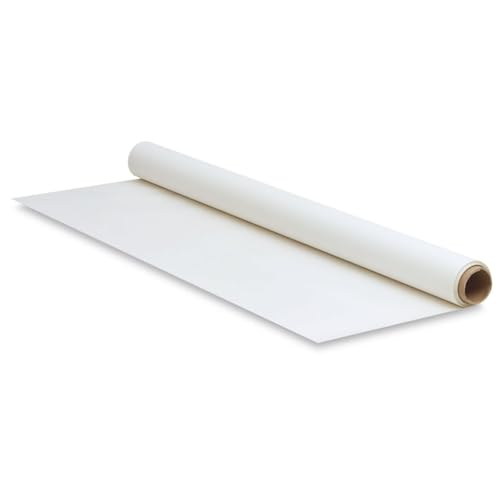

- Grafix Drafting Film Matte - 36" x 20 yds x .005", 1-Sided, Single Sheet
- 36" x 20 yards
What is the purpose of a comparison site?
When you search for a product on the Internet, you can compare all the offers that are available from the sellers. However, it can take time when it is necessary to open all the pages, compare the opinions of the Internet users, the characteristics of the products, the prices of the different models… Offering you reliable comparisons allows us to offer you a certain time saving and a great ease of use. Shopping on the Internet is no longer a chore, but a real pleasure!
We do everything we can to offer you relevant comparisons, based on various criteria and constantly updated. The product you are looking for is probably among these pages. A few clicks will allow you to make a fair and relevant choice. Don’t be disappointed with your purchases made on the Internet and compare the best Drafting Applique Film now!
Last update on 2026-03-17 / Affiliate links / Images from Amazon Product Advertising API
How to Choose the Best Drafting Applique Film
Material Compatibility and Media Acceptance
When selecting drafting applique film, a primary consideration is its ability to accept various drawing and printing media. Films like the Chartpak DAF8 are specifically formulated to accept toner, ink, pencil, and pen, which is essential for transferring a wide range of content from printed documents or hand-drawn elements onto a design. Other films, such as those from Grafix or ALVIN, typically cater to pencil and ink drawing applications, with some featuring chemically matted surfaces to enhance lead adhesion. Users should verify if the film supports their intended media, especially if working with digital prints or photocopies, as not all surfaces are equally receptive to toner.
Durability and Dimensional Stability
The longevity and structural integrity of drafting film are critical for professional use. Products like Grafix Dura-Lar are engineered for exceptional durability, designed not to tear or discolor over time, and offer the combined benefits of Mylar and Acetate without their drawbacks. For projects requiring high precision and resistance to environmental changes, ALVIN's drafting film is noted for its dimensional stability, which ensures that drawings maintain their accurate scale regardless of temperature or humidity fluctuations. Heat resistance, as seen in Grafix Dura-Lar's ability to withstand temperatures up to 300℉, is another premium feature that prevents warping during various design processes.
Surface Finish and Erasability
The surface finish of drafting film significantly impacts drawing experience and outcome. Translucent or clear films, like the Chartpak DAF8 with its translucent backing, simplify the positioning and sizing of transferred material. Matte finishes, present on both Grafix Dura-Lar and ALVIN's drafting film, provide an ideal drawing surface for pencil and ink, offering a slight tooth for better media adherence. Excellent erasability, a feature highlighted in ALVIN's 0.003" thick film for both ink and film lead, is paramount for making corrections without ghosting or damaging the film surface, a common concern in detailed drafting work. Some films may offer a matte finish on one side, while others, like Grafix Dura-Lar, provide a drawing surface on two sides for increased versatility.
Size and Format Options
Drafting applique films are available in various sizes and formats to accommodate different project scales. Standard sheet sizes such as 8.5" x 11" (Chartpak DAF8) or 11" x 14" (Grafix Dura-Lar) are suitable for smaller details, standard documents, or individual components. For larger-scale architectural or engineering plans, films are commonly supplied in rolls, such as the 36" x 20 yards Grafix Drafting Film Matte or the 36" ALVIN Drafting Film. Selecting the appropriate size and format can streamline workflow, reduce waste, and eliminate the need for piecing together smaller sheets for extensive drawings.
Pros & Cons
Chartpak DAF Drafting & Design Applique Film, 8.5" x 11", 100 Clear Sheets/Box (DAF8)
Pros
- Specifically designed for transferring typed, photocopied, or printed material.
- Accepts a wide range of media including toner, ink, pencil, and pen.
- Translucent backing simplifies precise positioning and sizing on existing plans.
Cons
- Limited to standard 8.5" x 11" sheet size, which may not suit large format projects.
- Specific durability characteristics beyond media acceptance are not explicitly detailed.
Grafix Dura-Lar 0.005" Film, Matte, Translucent 11"x14", Economical Alternative to Drafting Film, Mylar and Acetate, Translucent Drawing Surface for Lead, Ink, Charcoal and Paint, Pad of 25 Sheets
Pros
- Offers superior durability, resisting tears and discoloration over time.
- Exceptional heat resistance, tolerating temperatures from -94℉ to 300℉.
- Features a translucent drawing surface on two sides, enhancing versatility for drafting, drawing, and stenciling.
Cons
- Pad of 25 sheets may be insufficient for high-volume professional use.
- At 0.005" thick, it might be thicker than preferred for certain delicate overlay applications.
Drafting Film Size: 36"
Pros
- Provides excellent erasability for both ink and film lead, crucial for revisions.
- Exhibits superior dimensional stability, maintaining accuracy in varying conditions.
- Chemically matted surface optimized for both pencil and ink drawing applications.
Cons
- Product description lacks details on sheet count or specific roll length for the 36" size.
- At 0.003" thick, it might be perceived as less robust than thicker film options for heavy-duty use.
Common Mistakes to Avoid
Overlooking Media Compatibility
A frequent error is assuming all drafting applique films accept the same range of media. For instance, while Chartpak DAF8 explicitly states compatibility with toner, ink, pencil, and pen, other films may be primarily optimized for pencil and ink drawing. Attempting to transfer photocopied material onto a film not designed for toner acceptance can lead to poor adhesion or smudging, compromising the final output.
Ignoring Film Thickness for Application Needs
Users sometimes select film without considering its thickness, which impacts handling and durability. ALVIN's drafting film, at 0.003" thick, offers excellent erasability but might feel less substantial than a 0.005" film like Grafix Dura-Lar. For frequent handling or overlaying, a thicker film provides more rigidity, whereas a thinner film might be preferred for minimal bulk or specific layering techniques.
Neglecting Dimensional Stability and Environmental Factors
Another mistake is underestimating the importance of dimensional stability, especially for projects subject to varying environmental conditions. Films without inherent stability, unlike ALVIN's drafting film, can expand or contract with temperature and humidity changes, leading to inaccuracies in scaled drawings. For applications requiring precise measurements, ensuring the film can withstand environmental shifts, such as Grafix Dura-Lar's heat resistance, is crucial to prevent distortion.
Misjudging Surface Finish for Drawing Method
The choice of surface finish can significantly affect the drawing experience. Films with a matte finish, like Grafix Dura-Lar or ALVIN's chemically matted film, provide a 'tooth' that is ideal for pencil and ink, allowing for crisp lines and good media adhesion. Opting for a clear or glossy film when a matte surface is needed for pencil work can result in a slippery surface, leading to less control and poorer line quality, impacting the overall professionalism of the draft.
