Electric motors are fundamental components across countless applications, from intricate DIY projects to heavy-duty industrial machinery like air compressors and agricultural equipment. Selecting the appropriate motor hinges on understanding its power, speed, and physical specifications relative to the intended task. Products were evaluated based on performance metrics such as horsepower and RPM, frame type and shaft configuration, voltage compatibility, user reviews, and feature analysis.
VEVOR 1HP Electric Motor 1725 RPM, AC 115V/230V, 56C Frame, Air Compressor Motor Single Phase, 5/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
$163.93
The VEVOR 1HP motor offers a versatile power output and dual voltage capability, making it suitable for a wide range of general-purpose industrial and agricultural applications.
View on Amazon

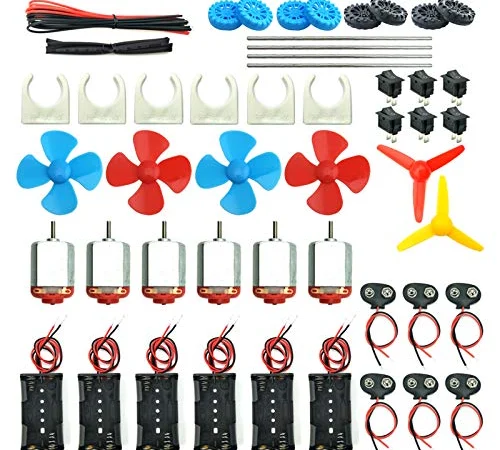

EUDAX 6 Set DC Motors Kit, Mini Electric Hobby Motor 3V -12V 25000 RPM Strong Magnetic with Shaft Propeller, 2 x AA Battery Holder,9V Battery Clip Connector,Plastic Wheels for DIY Science Projects
$11.99
The EUDAX DC Motors Kit provides an economical and comprehensive set for educational purposes, hobby projects, and small-scale DIY experiments.
View on Amazon
VEVOR 2HP Electric Motor 1725 RPM, AC 115V/230V, 143/5T Frame, Air Compressor Motor Single Phase, 7/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
$209.90
The VEVOR 2HP Electric Motor delivers substantial power and a robust 143/5T frame, ideal for more demanding applications requiring higher output and durability.
View on Amazon
- High Performance: 2HP SPL 3450 RPM, Single Phase, Full Load Amps: 20/10 Amps, 115V/230V, SF: 1.0.
- Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
- Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
- Dual Rotation Direction: Motor is Reversible for CCW/CW rotation (Factory Setting is CCW), provides easier wiring operations.
- 【Upgrade Electric DC Motor Basic Parameters】: 72V 5000W BLDC Brushless Motor,providing 8.5N.m of torque.Peak Torque:35N.m. rated speed 5000rpm, maximum speed 8000rmb(no-load speed), current 60A（Max80~100A）, small size, aluminum body, all copper...
- 【Appearance Upgraded Brushless DC Motor】:Kunray KR5V DC motor, the surface of the motor adopts the design of heat dissipation strip and heat dissipation cover. The motor can better heat dissipation in the process of use, which is the rapid cooling of...
- 【Internal structure upgrade Electric Kart Motor】: KR5V Electric DC Motor Upgrade V-Magnet Rotor 5 Pair Magnet Poles. In the process of your use, you can make the motor play a greater effect and improve the performance of the motor. And is not...
- 【Sine Wave BLDC Controller】:The motor uses the KTY84-130TMP sensor and the te.mperature can be adjusted by a sine wave controller. Equipped with a sine wave brushless controller with temperature sensing function, you can customize and monitor...
- Pay attention: Please read the instructions or pictures carefully, use the correct circuit diagram to avoid short circuit, short circuit will produce high temperature and Causing accessory damage
- Shaft Propeller Aperture:2mm/0.078"; Diameter:60mm/2.36"; Number of vane:4 vane and 3 vane;colour:Red & Blue & Yellow&Green&Clear(Random Color)
- DC Motors Color:Siler+Red;Voltage:DC 3V-12V;No-load speed: 9000RPM- 25000RPM ±10%; Motor Body Diameter:27mm/1.06";Shaft Size:10x2.0mm/0.39"x0.08"(L*D);Motor Body Length;38mm/1.46"
- High torque Strong magnetic Brushed Electric 130 MOTOR, can be used for Science Educational models, DIY STEM toys, etc.. It is recommended to use a 3V battery drive to avoid high-speed operation affecting the motor life.
- 【Product Specifications】Upgrade your HVAC system with this versatile 1/3 HP fan and blower motor. It operates at 1725 RPM on 115V, FLA 6.0A, 60Hz. Features reversible rotation, a 1/2" shaft diameter, and a 5-5/8" diameter frame (48 Frame). Built with...
- 【Wide Compatibility - Replaces A.O. Smith, Emerson, GE & More】Stop searching for the exact model number. This blower motor directly replaces A.O. Smith GF2034; Emerson 8100; GE BF-4706, NBK20598; Grainger 3K384, 6K778; Universal 805; Baldor RSP2442A...
- 【Compatible with Century & Additional Popular Models】Also designed to replace Century models: 316P169, 316P175, 316P308, 316P309, 316P750, 316P759, 316P817, 48S17D11042A, 325P582, S48A74A02, S48H4LA11A2, S48H4LA11A3, S48H4LA59. Perfect for residential...
- 【Reversible Rotation for Versatile Airflow】Engineered for maximum flexibility. This motor features reversible rotation, allowing you to easily adapt airflow direction for various HVAC applications, including furnaces, air handlers, and ventilation...
- 5HP Air Compressor Motor: 5HP 3450 RPM, Single Phase, Full Load Amps: 25A, 230V.
- Frame Type: 56HZ Frame, 7/8" Keyed shaft, Shaft length-2.25".
- Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
- Dual Rotation Direction: Motor is Reversible for CCW/CW rotation (Factory Setting is CCW), provides easier wiring operations.
- Characteristics：The synchron motor has small power consumption and large torque which is convenient to use;The little motors are made of metal, rubber and plastic, running great, low noise and easy to install，It is a kind of common AC motor. you can...
- Applications: the synchronous motors are good tool for hand-made, school project; Suitable for home appliance, heater machine, electric fan, Christmas tree, air conditioner, massagers, dynamic visualizer, arts and crafts lighting, popcorn machine...
- Name: 6-foot black lamp power cord with Button Switch;Wire: The external PVC plastic, internal for the copper core,product specification: Full length of the cord is 6ft (1.8m)
- Quick Connector Terminal,Quickly Connect or Disconnect Wires,Each pieces has 2 channels,No tools or splice crimps needed. Simply press on the tab to connect or release wire,easy to use ,internal for the copper core
- Powerful Performance: 1.5HP, Single Phase, Full Load Current: 15.0/7.5A, AC 115V/230V 60Hz, 1725 RPM High Speed, SF: 1.15.
- Sturdy Frame Type: 56C Frame, 5/8" Keyed shaft, Shaft length: 1.88", Keyway size: 0.188".
- Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications.
- Durable and Safe: Tested to CSA standards, this air compressor motor boasts a heavy-duty rolled steel shell for enhanced durability. It also includes overload protection with manual reset, ensuring longer service life and dependable performance.
Last update on 2026-11-03 / Affiliate links / Images from Amazon Product Advertising API
How to Choose the Best Electric Motors
Understanding Power and Speed Requirements
The primary consideration for any electric motor is its power output, typically measured in Horsepower (HP), and its rotational speed, measured in Revolutions Per Minute (RPM). For precision DIY projects or educational kits, a low-voltage DC motor like the EUDAX 6 Set, operating at 3V-12V and reaching speeds up to 25000 RPM, is often sufficient. These motors provide high speed with minimal torque, suitable for small fans or toy vehicles. In contrast, industrial applications such as air compressors or agricultural machinery require significantly more power. VEVOR offers a range of AC motors from 3/4HP to 2HP, consistently rated at 1725 RPM, which indicates a balance of torque and speed for continuous operation. Matching the motor's HP and RPM to the load it will drive is critical to prevent overheating or underperformance.
Frame Type and Shaft Configuration
The physical dimensions and mounting specifications of an electric motor are defined by its frame type and shaft configuration. Industrial motors often feature standard frame designations like 56C, 143/5T, or 48 Frame. The 'C' in 56C, for instance, denotes a C-face mounting, which is common for direct coupling to pumps or gearboxes. VEVOR motors frequently utilize 56C or 143/5T frames with keyed shafts (e.g., 5/8" or 7/8" diameter), designed for secure power transmission. For replacement applications, such as the SEAHEE GF2034 Blower Motor with its 48 Frame and 1/2" shaft, ensuring the frame type and shaft diameter precisely match the original unit is paramount for proper fit and function. The EUDAX hobby motors, on the other hand, feature much smaller 2mm shaft propellers, clearly indicating their light-duty purpose.
Voltage, Phase, and Rotation Direction
Electrical specifications like voltage and phase determine a motor's power source compatibility. Most industrial electric motors, including those from VEVOR, are single-phase and offer dual voltage capabilities (AC 115V/230V), providing flexibility for installation in various electrical environments. The EUDAX DC motors, however, operate on low DC voltage (3V-12V), typically powered by batteries, which is unsuitable for high-power AC applications. Another important feature is the rotation direction. Many modern motors, such as the VEVOR and SEAHEE units, offer reversible CW/CCW rotation. This capability simplifies wiring and allows for greater versatility in applications where the direction of rotation needs to be changed, such as conveyor belts or certain fan systems.
Durability and Application-Specific Features
The operational environment and expected lifespan influence the choice of motor. Motors designed for continuous duty in industrial settings, like the VEVOR series, are built with sturdy frames and robust components to withstand demanding conditions. For instance, the inclusion of a Service Factor (SF) exceeding 1.0 (e.g., 1.15) on VEVOR motors indicates they can temporarily handle loads beyond their rated horsepower without damage. Specialized motors, like the SEAHEE blower motor, are often direct replacements for specific OEM parts (e.g., Packard 45013, Emerson 8100), ensuring seamless integration and performance in their intended appliance. Hobby motors like EUDAX are not designed for such rigorous use and prioritize versatility for experimentation.
Pros & Cons
EUDAX 6 Set DC Motors Kit, Mini Electric Hobby Motor 3V -12V 25000 RPM Strong Magnetic with Shaft Propeller, 2 x AA Battery Holder,9V Battery Clip Connector,Plastic Wheels for DIY Science Projects
Pros
- Comprehensive kit with multiple motors and accessories ideal for DIY and educational projects.
- Low voltage operation (3V-12V DC) makes it safe and easy to power with common batteries.
- High no-load speed (9000-25000 RPM) suitable for small-scale, high-speed applications.
Cons
- Significantly lower power output, unsuitable for industrial or demanding mechanical tasks.
- Small shaft aperture (2mm) limits compatibility with larger or heavier loads.
VEVOR 2HP Electric Motor 1725 RPM, AC 115V/230V, 143/5T Frame, Air Compressor Motor Single Phase, 7/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
Pros
- High 2HP output and 1725 RPM provides substantial power for demanding machinery.
- Dual voltage (AC 115V/230V) and single-phase design offers broad electrical compatibility.
- Reversible CW/CCW rotation simplifies integration into various mechanical systems.
Cons
- Larger 143/5T frame and 7/8" keyed shaft may require specific mounting and coupling.
- Higher power consumption compared to smaller motors, less suitable for light-duty tasks.
B0FVKZQMSX
Pros
- Direct replacement for numerous OEM blower motors, simplifying maintenance and upgrades.
- Includes a capacitor for straightforward installation and immediate operation.
- Durable design built to match OEM standards ensures reliable performance in specific applications.
Cons
- Lower 1/3 HP output limits its use to lighter loads, primarily blower applications.
- Specific 48 Frame and 1/2" shaft diameter may not be universally compatible with other equipment.
Common Mistakes to Avoid
Overlooking Frame Type and Shaft Dimensions
A frequent error involves selecting a motor without carefully verifying its frame type and shaft dimensions. For instance, a VEVOR motor with a 143/5T frame and a 7/8" keyed shaft is fundamentally different from one with a 56C frame and a 5/8" keyed shaft. Attempting to install a motor with an incompatible frame or shaft will lead to mounting issues or necessitate costly modifications to the equipment. Similarly, using a hobby motor like the EUDAX kit with its 2mm shaft propeller aperture for anything beyond light-duty tasks will result in immediate failure.
Mismatched Voltage and Phase Requirements
Failing to match the motor's voltage and phase with the available power supply is a critical mistake. While VEVOR's industrial motors offer versatile AC 115V/230V single-phase operation, they are incompatible with a low-voltage DC source. Conversely, attempting to power the EUDAX 3V-12V DC motors with an AC supply designed for the VEVOR 2HP motor would result in severe damage to the DC motor. Always confirm the power input requirements before purchase and installation.
Ignoring Rotation Direction and Reversibility
The direction of rotation (CW/CCW) is often overlooked, especially in applications where specific directional movement is critical. Many VEVOR and SEAHEE motors feature dual rotation direction, simplifying wiring and offering flexibility. However, if a motor lacks this feature and is wired incorrectly or is inherently designed for a single direction, it can lead to improper machine function or damage. Always check if the application requires reversible rotation and if the chosen motor supports it.
Underestimating Power and Speed Needs
Choosing a motor with insufficient horsepower (HP) or an inappropriate RPM for the intended load is another common pitfall. A 3/4HP VEVOR motor, while capable, may struggle or overheat if tasked with driving equipment that truly requires a 2HP motor. Conversely, using a high-RPM hobby motor like the EUDAX kit for applications needing high torque at lower speeds will simply not provide the necessary force. Always calculate or verify the power and speed demands of your application to ensure optimal motor performance and longevity.
