Understanding Pressure Gauge Accessories

Pressure gauge accessories encompass a range of components designed to complement, protect, or adapt pressure gauges for specific applications. These can include fittings, adapters, siphons, diaphragms, snubbers, and carrying cases. Each plays a critical role in maintaining gauge integrity and ensuring accurate measurements in diverse environments.

Key Accessory Types and Their Functions

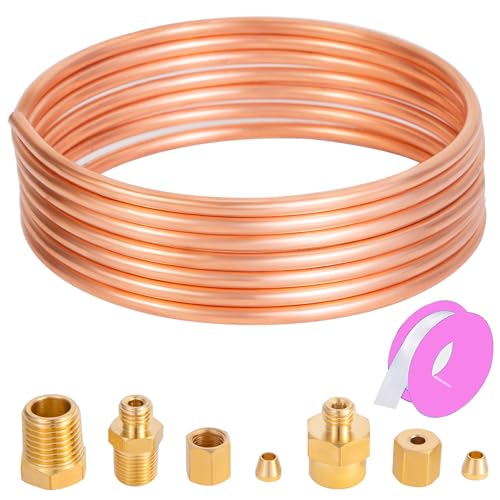

• Fittings and Adapters: These are essential for connecting a gauge to a process line. They come in various thread sizes and types (e.g., NPT, BSP) and materials (e.g., brass, stainless steel) to ensure a leak-proof and compatible connection.
• Siphons: Used in steam or hot fluid applications, siphons create a condensate barrier to protect the gauge from extreme temperatures, preventing damage and ensuring consistent readings.
• Snubbers: Also known as dampeners, snubbers reduce pressure fluctuations and pulsations caused by pumps or compressors. This protects the gauge's internal mechanism from rapid changes, improving accuracy and longevity.
• Diaphragm Seals: These isolate the gauge from the process fluid, protecting it from corrosive, viscous, or high-temperature media. They are crucial for maintaining gauge accuracy and preventing contamination in sensitive applications.
• Protective Cases and Housings: For portable gauges or those in harsh environments, these accessories offer physical protection against impacts, dust, and moisture, extending the gauge's operational life.

Choosing the Right Material and Connection Type

The material of the accessory must be compatible with the process media and the operating environment. Stainless steel is common for corrosive or high-pressure applications, while brass is suitable for less demanding conditions. Connection types, such as NPT (National Pipe Thread) or BSP (British Standard Pipe), must match the gauge and the port it will connect to. Always verify thread size and pitch to ensure a secure fit.

Considerations for Specific Applications

For high-vibration environments, snubbers and robust mounting solutions are paramount. In chemical processing, diaphragm seals made of chemically resistant materials are indispensable. For food and beverage or pharmaceutical applications, sanitary fittings and seals are necessary to maintain hygiene standards. Always assess the pressure range, temperature, and media compatibility when selecting accessories.
