The Best RG-174-U Coaxial Cables

Understanding RG-174-U Specifications

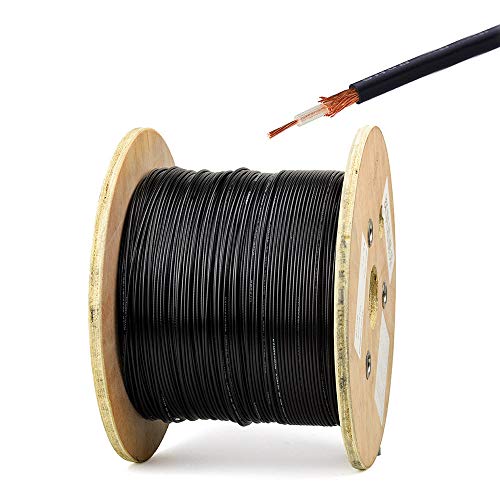

RG-174-U is a thin, flexible coaxial cable often used for short runs where flexibility is paramount. Key specifications to look for include impedance (typically 50 ohms for RF applications), conductor material (usually tinned copper or copper-clad steel), dielectric material (like solid polyethylene or foam polyethylene), and shielding effectiveness (often measured in dB).

Connector Types and Compatibility

The connectors on the ends of the coaxial cable are critical for establishing a secure and efficient connection. Common connector types for RG-174-U include BNC, SMA, TNC, and F-type. Ensure the connectors match the ports on your equipment. For instance, SMA connectors are frequently used in Wi-Fi and amateur radio, while BNC connectors are common in test equipment and video applications.

Cable Length and Flexibility

RG-174-U is favored for its small diameter and high flexibility, making it ideal for routing through tight spaces or for applications requiring frequent movement. Consider the required length carefully, as excessively long cables can introduce signal loss (attenuation). Measure your intended path accurately to avoid purchasing too much or too little cable.

Shielding and Durability

The shielding of a coaxial cable protects the signal from electromagnetic interference (EMI). RG-174-U typically features a braided shield, sometimes with a foil layer for enhanced protection. For outdoor or harsh environments, look for cables with a durable outer jacket material, such as PVC, that offers resistance to UV rays, moisture, and abrasion.
