Spectrum analyzers are indispensable tools for evaluating and troubleshooting radio frequency (RF) signals. Selecting the appropriate model ensures accurate measurements, efficient workflow, and reliable performance in diverse applications. Understanding key features will help you find a device that meets your specific technical requirements.
Upgraded ZS406 TinySA Ultra+:This New Version V0.4.6.1 Spectrum Analyzer is developed by Hugen, with 4.0 inch 480 x 320 large touchscreen display, 100kHz to 5.4GHz widely measure range, with the new ESD protection function, the product has a higher...
Widely Frequency Range: Compared to the tinysa (100kHz to 960MHz), the upgraded tinysa ULTRA+ has 100kHz to 5.4GHz ultra-wide measuring frequency range, spectrum analyzer for 0.1-800MHz, with Ultra mode up to 0.1MHz-6GHz.Switchable resolution band pass...
2 in 1 Multifunctional Frequency Analyzer & Signal Generator:When not used as Spectrum Analyzer it can be used as Signal Generator,with sine wave output between 0.1-800MHz or square wave or dual tone output up to 4.4GHz.Built-in calibration signal...
PC Control: Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer or Signal Generator.Tinysa-APP transfers data directly to the computer.The USB interface implements CDC protocol and there is a large set of commands that can be invoked...
Ultra-long Battery Life: The upgraded tinysa analyzer built-in 5000mAh battery,with type-C charging cable and LED charging indicator,it can be fully charged within 3 hours,no need to charge frequently
Excellent Phase Noise Performance: With advanced spectrum analyzer, especially tinysa ultra, outstanding phase noise performance is shown. At 30MHz, phase noise is -108dB/Hz at 100kHz offset and -115dB/Hz at 1MHz offset. DANL is -166dBm/Hz. There's an LNA...
Package Contents: 1x ZS406 Tinysa ULTRA+ Spectrum Analyzer (built-in 5000mAh battery), 1x 32GB Micro SD card (plugged in the host) 2x 30cm ALSR100 SMA cables,1 x USB Type-C data cable, 1x SMA-SMA barrel connector,1x TLanyard and touch plectrum; 1x Antenna...
Frequency Range :Tiny Spectrum Analyzer with two inputs, high quality MF/HF/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for 240MHz-960MHz. Switchable resolution bandpass filters for both ranges between 2.6kHz and 640kHz. Color display showing...
Built-in Calibration Signal Generator:When not used as Spectrum Analyzer it can be used as Signal Generator, MF/HF/VHF sinus output between 0.1MHZ-350MHz, UHF square wave output between 240MHz-960MHz. Built-in calibration signal generator that is used for...
Tiny Spectrum analyzers & ESD Function: Switchable resolution bandpass filters for both ranges between 2.6kHz and 640kHz.Color display showing 290 scan points covering up to the full low or high frequency range. Bulit-in rechargeable battery allowing a...
PC Control: Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer.The USB interface implements the Serial over USB (CDC) protocol and there is a large set of commands that can be invoked over the serial interface. These command can be...
Package List: 1x Tiny Spectrum Analyzer; 2 x 20cm RF Cable;1 x USB Cable;1 x SMA Female to Female Connector;1x Touchscreen Pen;1 x SMA Telescopic Antenna.It's very useful as an antenna analyzer for your ham station, easy to set without fancy...
Upgraded TinySA Ultra+ ZS406: Built on the latest HW V0.4.6, the AURSINC TinySA Ultra+ ZS406 features a 4.0 inch 480*320 touchscreen display for intuitive operation. It comes with a pre-installed 32GB micro SD card for convenient on-site data storage and...
Wide Frequency Range & Adjustable RBW: Covers a measurement range of 100kHz to 5.4GHz, with Ultra mode extending up to 6GHz. Switchable resolution bandwidth from 200Hz to 850kHz enables fast and accurate measurements; the 200Hz minimum RBW clearly...
2-in-1 Analyzer & Signal Generator: Doubles as a signal generator when not used for spectrum analysis. It outputs MF/HF/VHF sine waves from 100kHz to 900MHz, UHF square waves from 800MHz to 4.4GHz, and mixed signals from 4.4GHz to 5.4GHz. A built-in...
Excellent Phase Noise performance: -108dB/Hz at 100kHz offset and -115dB/Hz at 1MHz offset (at 30MHz), with a DANL as low as -166dBm/Hz. An integrated LNA provides 20dB of extra gain for low-level signals (effective only below 3.5GHz). The default 800MHz...
PC Control: Connects to a PC via USB for data transfer and device control through the TinySA-APP, using Serial over USB (CDC) protocol with a full command set for measurements and internal settings. Drivers install automatically on Windows and are...
[WHAT YOU GET] 1x Tinysa ULTRA Spectrum Analyzer (built-in 5000mah rechargeable battery); 1x 32GB Micro SD card (plugged in the host); 2x 30cm ALSR100 SMA cables; 1 x USB Type-C data cable; 1x SMA-SMA barrel connector; 1x TLanyard and touch plectrum; 1x...
SEESII TinySA Ultra+ ZS407 & 4 Inch Hard Case: This SEESII TinySA Ultra+ ZS407 7.3GHz Spectrum Analyzer Kit comes with a heavy-duty waterproof & shockproof EVA protective shell, providing complete protection for your precision RF testing equipment...
Upgraded Tinysa Ultra+ ZS407 Spectrum Analyzer: Covers ultra-wide 100kHz–7.3GHz frequency range, provides accurate test data for RF system development, satellite alignment and frequency verification. Equipped with 4.0-inch HD touchscreen...
Broad Frequency Coverage: Supports 100kHz–7.3GHz, ideal for 5G NR, Wi-Fi 6E, satellite communications, and higher wireless frequency bands. Calibrated up to 8GHz, it enables broader applications for high-frequency testing in lab environments. Standard...
Robust Signal Generation: Functioning as both a spectrum analyzer and signal generator, it produces MF/HF/VHF sine waves from 100kHz-900MHz, UHF square waves from 800MHz-6.3GHz, and mixed signals from 4.4GHz-6.3GHz. Our spectrum analyzer antenna's...
Convenient PC Control and Data Transfer: With USB and TinySA-APP connectivity, the device supports real-time data display and transfer, enhancing data management efficiency. This sdr spectrum analyzer includes a 32GB MicroSD card for easy data storage and...
Enhanced Protection with Durable Construction: The custom-designed EVA hard shell provides exceptional protection for your Tinysa Ultra+ ZS407, effectively safeguarding it from scratches, dust, and accidental damage. Its shockproof, waterproof, and...
Dual-Layer Storage Organizer: The bag includes mesh pockets and foam dividers, keeping cables, and accessories neatly organized to avoid clutter. The soft lining protects the device from scratches and keeps it clean

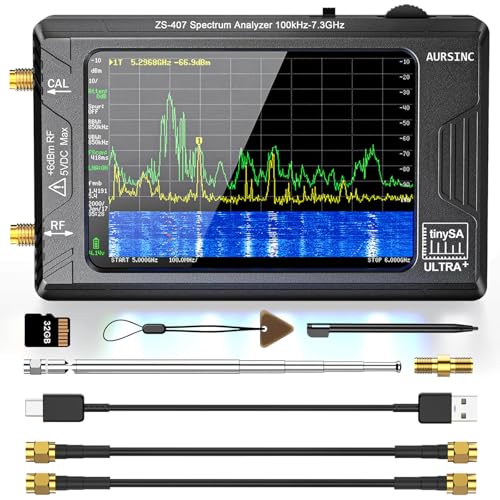

7.3GHz Wide Spectrum Analysis: AURSINC TinySA Ultra+ ZS407 is a handheld spectrum analyzer covering 100kHz–7.3GHz frequency measurement. It features a base frequency range of 0.1–900MHz and reaches up to 7.3GHz when Ultra mode is enabled, with level...
Clear RF Data Visualization: Equipped with a 4-inch IPS-TFT LCD (480x320) display and up to 450 scan points per sweep, this RF analyzer presents signal details and measurement results clearly for efficient signal observation and measurement analysis
2-in-1 Analyzer & Signal Generator: Beyond spectrum measurement, TinySA Ultra+ ZS407 delivers signal generation functions. It offers sine wave output ranging from 0.1 MHz to 900 MHz, square wave output, and RF test signal output up to 7.3 GHz, supporting...
Enhanced Signal Reception with Built-In LNA: The integrated LNA provides up to 20dB gain up to 7.3GHz, helping improve weak signal reception during spectrum analysis. TinySA Ultra+ ZS407 features low phase noise that delivers superior signal purity...
Long-Lasting Battery: Equipped with a 3.7V 5000mAh Li-polymer battery, the ZS407 Spectrum Analyzer offers substantially extended battery life compared with earlier models. It satisfies demands for prolonged continuous testing and outdoor operations...
[Portable Data Management] With PC control support and a built-in 32GB MicroSD card, TinySA Ultra makes it easier to save measurement data, transfer results, and review RF signals during lab or field testing
Pakage List: 1x Tinysa ULTRA+ ZS407 Spectrum Analyzer (built-in 5000mah rechargeable battery); 1x 32GB Micro SD card (plugged in the host); 2x 30cm ALSR100 SMA cables; 1 x USB Type-C data cable; 1x SMA-SMA barrel connector; 1x TLanyard and touch plectrum...
[UPGRADED NanoVNA-H] New HW Version V3.7. It is upgradeable as new firmware is developed. With MicroSD card port now can have the measurement data or the screenshots saved in the it at anytime. Added battery circuit management, more secure. Redesigned...
[IMPROVED FREQUENCY ALGORITHM] The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 9KHz-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic...
[MULTIPLE FUNCTIONS] The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port...
[SUPPORT ANDROID PHONE & PC SOFTSARE CONTROL] Designed a practical and simple control application on PC, you can download touchstone(SNP) files for radio design and simulation software. There is a PC interface that adds functionality and lets you work...
[STRONG AND SECURE POWER SUPPLY] This VNA is battery powered or USB powered. Built in 650mAh battery, could work for 2 hours continuously. For longer measurement time, kindly connect an external power source. The product interface displays battery usage...
【TinySA ULTRA+ and 4 inch Protective Case】:This TinySA ULTRA+ ZS406 4GHz Spectrum Analyzer Kit comes with a heavy-duty EVA storage case, providing complete protection for your precision RF testing equipment. Compact and practical, this case is a...
【2-in-1 Functionality: Spectrum Analyzer + Signal Generator】:Use it as both a high-performance spectrum analyzer and signal generator with sine/square wave output (0.1-800MHz standard, up to 4.4GHz). The built-in calibration signal and switchable...
【Complete Protection & Connectivity】:Your spectrum analyzer stays protected in the waterproof/shockproof EVA case with custom foam insert, while enjoying PC connectivity via USB (Windows/Linux/Mac compatible) and long-lasting 3000mAh battery with...
【Frequency Range】:Compared to the tinysa (100kHz to 960MHz), the upgraded tinysa ULTRA+ has 100kHz to 5.4GHz ultra-wide measuring frequency range, spectrum analyzer for 0.1-800MHz, with Ultra mode up to 0.1MHz-6GHz.Switchable resolution band pass...
【PC Control】: Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer or Signal Generator.Tinysa-APP transfers data directly to the computer.The USB interface implements CDC protocol and there is a large set of commands that can be...
Last update on 2026-09-01 / Affiliate links / Images from Amazon Product Advertising API
How to Choose the Best Spectrum Analyzers
Key Factors When Choosing a Spectrum Analyzer
When selecting a spectrum analyzer, consider the following critical aspects:
Frequency Range and Bandwidth: Determine the highest and lowest frequencies you need to measure. Ensure the analyzer’s range covers your entire spectrum of interest, from low-frequency applications to microwave frequencies. Bandwidth is also crucial; a wider bandwidth allows for the analysis of broader signals.
Sensitivity and Dynamic Range: Sensitivity, often expressed as a Minimum Displayed Average Noise Level (DANL), indicates the weakest signal the analyzer can detect. A lower DANL is better. Dynamic range refers to the ratio between the strongest and weakest signals that can be measured simultaneously without distortion. A wider dynamic range is essential for analyzing signals with large amplitude differences.
Portability and Power: For field use or mobile applications, consider handheld or portable spectrum analyzers. Evaluate battery life, ruggedness, and ease of transport. Benchtop models typically offer more features and higher performance but are less portable.
Frequently Asked Questions
What is the primary function of a spectrum analyzer?
A spectrum analyzer visually displays the magnitude of an input signal versus its frequency. It's used to identify signal characteristics, measure signal power, detect interference, and troubleshoot RF systems.
What is DANL and why is it important?
DANL stands for Displayed Average Noise Level. It represents the noise floor of the spectrum analyzer itself. A lower DANL means the analyzer can detect weaker signals, which is critical for sensitive measurements.
How does dynamic range affect measurements?
Dynamic range indicates the analyzer's ability to measure both strong and weak signals within the same sweep without distortion. A wide dynamic range is necessary when analyzing signals with a large difference in power levels, such as a strong carrier with a weak spurious emission.
Are there different types of spectrum analyzers?
Yes, spectrum analyzers come in various forms, including benchtop, handheld, and USB models. Benchtop units generally offer the highest performance and most features, while handheld devices are ideal for field testing and portability.
