The Best Uncoated Prototyping Boards

Understanding Board Type: Single vs. Double-Sided

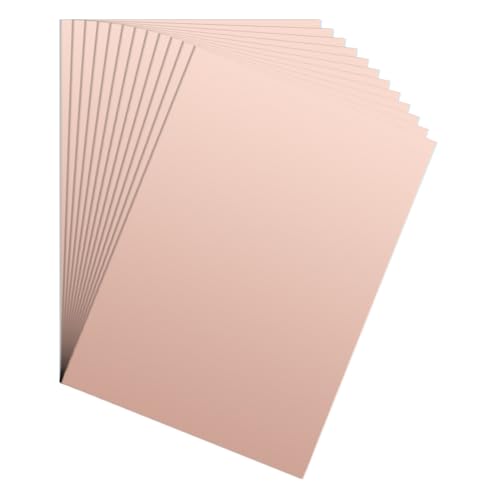

The choice between single-sided and double-sided copper clad laminates significantly impacts circuit complexity and routing possibilities. Single-sided boards, such as the PATIKIL 2x2.8 inch 1mm (B0DDPJR1Y1) or the larger PATIKIL 2.8x4 inch 2mm (B0DDPJ3SVG), provide copper on only one surface. This is typically sufficient for simpler circuits with fewer components and traces, where all connections can be routed on a single plane without crossovers. In practice, single-sided boards are easier to etch for beginners.

Conversely, double-sided boards, like the PATIKIL 2x2.8 inch 2mm (B0DDPJ2W6X) or the expansive PATIKIL 6x8 inch 1.5mm (B0DDP7FH1F), feature copper layers on both sides of the FR4 substrate. This allows for much denser and more complex circuit designs, enabling components to be placed on both sides or traces to cross over each other via vias, effectively reducing board size and improving signal integrity for intricate projects. Users report that double-sided boards, while more challenging to etch accurately, are indispensable for advanced prototypes.

Material and Durability: The FR4 & Copper Foundation

All the prototyping boards evaluated, including those from PATIKIL, utilize FR4 as the dielectric substrate, clad with copper. FR4 is a glass-reinforced epoxy laminate known for its high mechanical strength, excellent dielectric properties, good heat resistance, and dimensional stability. These characteristics are crucial for a board that will undergo etching, drilling, and soldering processes. The quality of the FR4 ensures the board maintains its integrity under thermal stress and mechanical handling.

The copper cladding is what forms the conductive traces. While specific copper thickness isn't always detailed, the presence of a consistent, high-quality copper layer is vital for reliable circuit performance and ease of etching. PATIKIL boards, for instance, are designed for DIY PCB kits, indicating they are suitable for chemical etching processes. The robust nature of FR4, as highlighted in the advantages of PATIKIL products, ensures that the finished PCB will be durable and reliable for its intended application.

Physical Dimensions: Size and Thickness Considerations

The physical dimensions—size and thickness—are critical factors depending on the project's scale and mechanical requirements. PATIKIL offers a range of sizes, from compact 2x2.8 inch (e.g., B0DDPJR1Y1) suitable for small modules or test circuits, to larger 2.8x4 inch (B0DDPJ3SVG) and substantial 6x8 inch (B0DDP7FH1F) options for more extensive or multiple circuit layouts. The larger boards provide more space, reducing the need for multiple smaller boards for complex designs.

Board thickness also plays a significant role. PATIKIL boards are available in 1mm, 1.5mm, and 2mm options. Thicker boards, like the PATIKIL 2x2.8 inch 2mm (B0DDPJ2W6X), offer greater rigidity and mechanical strength, which can be beneficial in applications where the board might experience physical stress or needs to support heavier components. Thinner boards, such as the 1mm PATIKIL (B0DDPJR1Y1), are lighter and can be easier to cut, often preferred for less demanding applications or where space is extremely constrained.

Quantity per Pack and Project Scale

The quantity of boards included in a pack directly influences cost-effectiveness and suitability for ongoing or multiple projects. PATIKIL offers various pack sizes, typically 6 or 12 pieces. For hobbyists or those undertaking a single project, a 6-piece pack might suffice. However, for iterative development, educational purposes, or small-scale production, a 12-piece pack, such as the PATIKIL 2x2.8 inch 1mm (B0DDPJR1Y1) or the PATIKIL 6x8 inch 1.5mm (B0DDP7FH1F), provides better value and ensures spare boards are available for mistakes or future modifications. Users typically find that having extra boards on hand speeds up the prototyping process by allowing for quick re-attempts.

Underestimating Circuit Complexity for Board Type

A common mistake is selecting a single-sided prototyping board, such as the PATIKIL 2x2.8 inch Single Sided (B0DDPJR1Y1), when the intended circuit requires intricate routing or high component density. For projects involving microcontrollers, numerous ICs, or complex signal paths, a single copper layer often proves insufficient, leading to frustrating routing challenges. In practice, users find themselves resorting to extensive jumper wires or having to restart with a double-sided board like the PATIKIL 2x2.8 inch Double Sided (B0DDPJ2W6X) to successfully complete their design.

Ignoring Mechanical Stress and Board Thickness

Many prototypers overlook the importance of board thickness relative to mechanical stress. Choosing a thinner board, like a 1mm PATIKIL FR4 (B0DDPJR1Y1), for an application where the PCB will bear significant weight or frequent plugging/unplugging can result in board flex or even breakage over time. For more robust applications or larger boards, opting for a 1.5mm (e.g., PATIKIL 6x8 inch B0DDP7FH1F) or 2mm (e.g., PATIKIL 2x2.8 inch B0DDPJ2W6X) thickness provides much greater rigidity and durability, preventing issues from mechanical strain or component weight.

Misjudging Required Board Real Estate

Another frequent error is underestimating the physical space needed for components and traces, leading to cramped layouts. Starting with a smaller board, such as the PATIKIL 2x2.8 inch (B0DDPJR1Y1), for a project that ultimately expands beyond its limits forces designers to either compromise on layout or transfer to a larger board. It's often more efficient to begin with a slightly larger option, like the PATIKIL 2.8x4 inch (B0DDPJ3SVG) or even the 6x8 inch (B0DDP7FH1F), to allow for future additions, debugging space, and easier component placement.

Overlooking Pack Quantity for Project Longevity

Purchasing a pack with too few boards for an iterative design process or multiple projects is a common oversight. While a 6-piece pack (e.g., PATIKIL 2x2.8 inch Double Sided B0DDPJ2W6X) might seem adequate initially, prototyping often involves several attempts, and having spare boards significantly streamlines the workflow. Opting for a 12-piece pack (e.g., PATIKIL 2x2.8 inch Single Sided B0DDPJR1Y1) typically offers better value and ensures continuity without delays when a mistake occurs or a new iteration is needed.
