Mechanical miter gears are crucial components for transmitting rotational motion and torque between shafts typically oriented at a 90-degree angle, often found in machinery requiring precise power redirection. They are frequently utilized in conveying systems, agricultural equipment, and various industrial automation applications. Products were evaluated based on material composition, geometric specifications like pressure angle and pitch, bore dimensions, user reviews, and feature analysis.

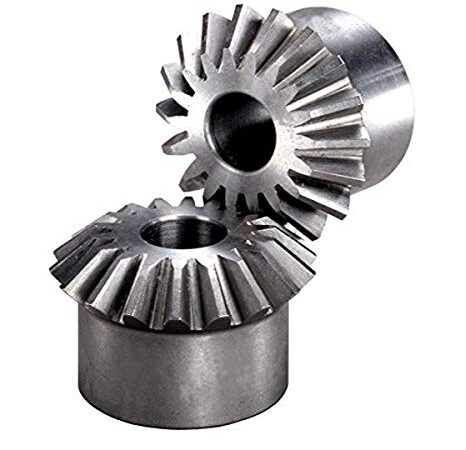

Boston Gear L125Y Miter Gear, 1:1 Ratio, 20 Degree Pressure Angle, 0.375" Bore, 1.25" Mounting Distance, 12 Pitch, 15 Teeth, Steel
The Boston Gear L125Y offers a balanced combination of a proven brand, specific engineering for high load capacity, and robust steel construction suitable for diverse industrial applications.
Search on Amazon2Pcs Bevel Gear Tapered Bevel Pinion Gear Bevel Gears 2 Module 20 Teeth for Hardware Mechanical Rotation (20T 12mm Hole)
$16.99
This 2-piece set of bevel gears provides a cost-effective solution with durable 45# steel and includes mounting hardware, making it accessible for general mechanical rotation tasks.
Search on AmazonBoston Gear L112Y Miter Gear, 1:1 Ratio, 20 Degree Pressure Angle, 0.500" Bore, 1.375" Mounting Distance, 16 Pitch, 24 Teeth, Steel
The Boston Gear L112Y, with its larger bore and higher tooth count while maintaining the brand's engineered design, caters to applications demanding specific dimensional compatibility and reliable performance.
Search on Amazon
- Straight miter 90 degree mesh transmits mechanical power between perpendicular shafts
- Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
- Low carbon steel (.2 percent carbon) for applications where the hardness and strength of higher levels of carbon are not needed to transmit torque and motion
- Unhardened teeth for 1:1 gear ratio applications where hardness and strength are not needed to transmit torque and motion
- Straight miter 90 degree mesh transmits mechanical power between perpendicular shafts
- Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
- Low carbon steel (.2 percent carbon) for applications where the hardness and strength of higher levels of carbon are not needed to transmit torque and motion
- Unhardened teeth for 1:1 gear ratio applications where hardness and strength are not needed to transmit torque and motion
- Straight miter 90 degree mesh transmits mechanical power between perpendicular shafts
- Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
- Low carbon steel (.2 percent carbon) for applications where the hardness and strength of higher levels of carbon are not needed to transmit torque and motion
- Unhardened teeth for 1:1 gear ratio applications where hardness and strength are not needed to transmit torque and motion
- Straight miter 90 degree mesh transmits mechanical power between perpendicular shafts
- Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
- Low carbon steel (.2 percent carbon) for applications where the hardness and strength of higher levels of carbon are not needed to transmit torque and motion
- Unhardened teeth for 1:1 gear ratio applications where hardness and strength are not needed to transmit torque and motion
- Straight miter 90 degree mesh transmits mechanical power between perpendicular shafts
- Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
- High carbon steel for tensile strength and hardness
- 1 Set Metal Spril Bevel Gear, 18 Teeth 36 Teeth Milling Machine Accessories Lifting Gear C77+C96 Helical Mill Gear Part
- Material: Metal
- Package: 2pc (C77+C96 gear)
- High wear-resistance, strong and durable, long life time.
- Lower contact ratio between gears, higher load capacity.
- Straight miter gear for transmitting mechanical power between perpendicular shafts
- High carbon steel for tensile strength and hardness
- Pressure angle of 20 degrees for a lower contact ratio between gears
- Hardened teeth for 1:1 gear ratio applications for torque and motion
- Size - Module: 1.5M (1.5 Mod), 1:2 Ratio (15T/30T), Shaft Hole: 10/16mm, Steering Angle: 90 Degrees
- Hardened Steel Material: Bevel gears are made of 45# steel, which has good strength and wear resistance. The tooth surface is quenched and blackened to improve hardness and wear resistance, long service life
- Feature: The contact between the tapered bevel gears is firm, ensuring the normal operation of the machine and good load-bearing capacity.
- Application: The Bevel Gear can be used in agricultural equipment, textile machinery, printing machinery, automotive applications, and other mechanical transmission occasions.
- Note: Please note that this 1:2 ratio bevel gear set can only used with 1:2 gear wheel, and can not match the other modulus of teeth.
- Size - Module: 1M (1 Mod), 1:2 Ratio (20T/40T), Shaft Hole: 6/15mm, Steering Angle: 90 Degrees
- Hardened Steel Material: Bevel gears are made of 45# steel, which has good strength and wear resistance. The tooth surface is quenched and blackened to improve hardness and wear resistance, long service life
- Feature: The contact between the tapered bevel gears is firm, ensuring the normal operation of the machine and good load-bearing capacity.
- Application: The Bevel Gear can be used in agricultural equipment, textile machinery, printing machinery, automotive applications, and other mechanical transmission occasions.
- Note: Please note that this 1:2 ratio bevel gear set can only used with 1:2 gear wheel, and can not match the other modulus of teeth.
- 1. Stable performance, the sprocket can run smoothly and stably, will not jump teeth, reduce mutual impact, and is easy to process
- 2. The surface is smooth and burr-free, the tooth surface is regular and burr-free, does not damage the machinery, has a high degree of fit, and will not slip teeth
- 3. Good overall hardness, not easy to wear, good load-bearing capacity, easy to disassemble and assemble
This article is part of our complete guide Industrial & Scientific — browse all our comparisons and buying guides.
Last update on 2026-07-16 / Affiliate links / Images from Amazon Product Advertising API
How to Choose the Best Mechanical Miter Gears
Material Composition and Durability
The choice of material significantly dictates a miter gear's lifespan and load-bearing capabilities. Products from Boston Gear, such as the L125Y and L112Y, typically utilize low carbon steel (.2 percent carbon), which is suitable for applications where extreme hardness and strength are not the primary concern, offering a balance of machinability and durability. In contrast, many of the '2Pcs Bevel Gear' and PGFUN options are made from 45# steel. This material, often subjected to quenching and blackening processes, demonstrates higher wear-resistance and enhanced strength, making it a more robust choice for demanding environments. Users report that 45# steel gears tend to withstand more abrasive conditions.
Geometric Specifications: Pressure Angle, Pitch, and Teeth
Understanding the geometry of miter gears is paramount for proper meshing and efficient power transmission. The pressure angle, commonly 20 degrees as seen in Boston Gear products, influences the contact ratio between mating gears; a lower contact ratio typically results in a higher load capacity. Pitch (or module in metric systems) and the number of teeth determine the gear's size and speed ratio. For instance, a 12 Pitch gear like the Boston Gear L125Y will mesh differently than a 2 Module gear from the '2Pcs Bevel Gear' series or a 1.5 Module gear from PGFUN. Mismatched pitch or module will prevent proper operation, leading to premature wear or failure. A 1:1 ratio, common across all listed products, ensures the input and output shafts rotate at the same speed.
Bore Size and Mounting Considerations
The bore size is a critical dimension, as it must precisely match the diameter of the shaft the gear will be mounted on. Boston Gear offers imperial bore sizes such as 0.375" and 0.500", while brands like '2Pcs Bevel Gear' and PGFUN often provide metric options, including 12mm or 14mm holes. A precise fit is essential to prevent slippage and ensure concentricity. Furthermore, mounting distance, specified for Boston Gear products (e.g., 1.25" or 1.375"), indicates the distance from the gear's back face to the shaft's center, which is vital for correct alignment with a mating gear. Some '2Pcs Bevel Gear' sets simplify installation by including M5 screws and a spanner, which can be a practical advantage for certain setups.
Pros & Cons
Boston Gear L125Y Miter Gear, 1:1 Ratio, 20 Degree Pressure Angle, 0.375" Bore, 1.25" Mounting Distance, 12 Pitch, 15 Teeth, Steel
Pros
- Specifically engineered for straight miter 90-degree mesh, ensuring precise power transmission.
- 20-degree pressure angle typically provides higher load capacity compared to gears with smaller angles.
- Low carbon steel construction offers good machinability and suitability for many general industrial applications.
Cons
- Low carbon steel may not offer the extreme hardness or wear resistance required for very high-stress or abrasive environments.
- Specific mounting distance (1.25") requires careful consideration for shaft alignment.
2Pcs Bevel Gear Tapered Bevel Pinion Gear Bevel Gears 2 Module 20 Teeth for Hardware Mechanical Rotation (20T 12mm Hole)
Pros
- Made from 45# steel, providing high wear-resistance and robust durability for extended use.
- Includes M5 screws and a spanner, simplifying the installation process for users.
- Widely applicable in various mechanical rotation contexts, from agricultural to textile machinery.
Cons
- The '2 Module' specification requires careful matching with other metric gears to ensure proper meshing.
- Specific bore size (12mm hole) limits compatibility to corresponding shaft diameters.
PGFUN 2 Pcs 1.5M 20 Teeth 8/10/12/14/15/16mm Shaft Hole Tapered Bevel Gear 1: 1# 45 Steel 1.5 Module 90 Degree Steering Gear with M5 Fixing Hole (14mm)
Pros
- Constructed from 45# steel with quenching and blackening, enhancing wear resistance and strength.
- Offers multiple shaft hole sizes (8/10/12/14/15/16mm) within the product line, providing versatility.
- Designed for 90-degree steering applications, which is common in many mechanical systems.
Cons
- The '1.5 Module' specification is less common than 1M or 2M, potentially requiring specific mating gears.
- While durable, the 45# steel might require lubrication maintenance to prevent surface wear in continuous high-load operations.
Common Mistakes to Avoid
Overlooking Pressure Angle Compatibility
A frequent error is assuming all miter gears will mesh correctly, regardless of their pressure angle. For instance, Boston Gear products consistently feature a 20-degree pressure angle, which is engineered for specific contact ratios and load capacities. Attempting to pair a 20-degree gear with one designed for a different pressure angle can lead to inefficient power transmission, increased noise, and rapid wear, even if other dimensions appear to match.
Mismatched Pitch or Module Specifications
Users often fail to recognize the fundamental difference between 'pitch' (imperial) and 'module' (metric) or mismatch their values. Boston Gear specifies '12 Pitch' for some of its gears, whereas other products like the '2Pcs Bevel Gear' use '2 Module' or PGFUN uses '1.5 Module'. These are not directly interchangeable, and a gear with a 12 Pitch cannot properly mesh with a 2 Module gear. This oversight inevitably results in binding, excessive backlash, or complete operational failure.
Incorrect Bore Size and Mounting Distance
Selecting a miter gear with an incompatible bore size is a common mistake that leads to either a loose fit (causing wobble and vibration) or an inability to mount the gear at all. Boston Gear offers precise bore sizes like 0.375" or 0.500", while other brands provide metric options such as 12mm or 14mm. Furthermore, neglecting the specified mounting distance, such as the 1.25" for the Boston Gear L125Y, can cause misalignment between mating gears, leading to uneven tooth loading and premature component failure.
Underestimating Material Requirements for Load
A common pitfall is choosing a gear material that is inadequate for the application's load and wear demands. For example, Boston Gear's low carbon steel (.2 percent carbon) is suitable for many tasks but might not withstand the stresses of a heavy-duty application where a 45# steel, often treated with quenching and blackening as seen in PGFUN products, would be more appropriate. Under-specifying the material can lead to early tooth deformation, breakage, or rapid wear, requiring frequent replacements.
