The Best Welded Tube Fittings

Material Composition and Corrosion Resistance

The choice of material is paramount for welded tube fittings, directly impacting their longevity and suitability for specific environments. Stainless steel 304, as seen in products from DERNORD and GeilSpace, is a common selection due to its inherent resistance to corrosion and high temperatures, making it ideal for food processing, pharmaceutical, and general industrial applications where hygiene or chemical exposure is a concern. In contrast, galvanized steel, utilized by Ulifestar for its square tube couplers, offers a more economical solution for structural applications where protection against general atmospheric corrosion is sufficient, though it may not hold up in highly acidic or saline conditions as effectively as stainless steel.

Connection Type and Application Specificity

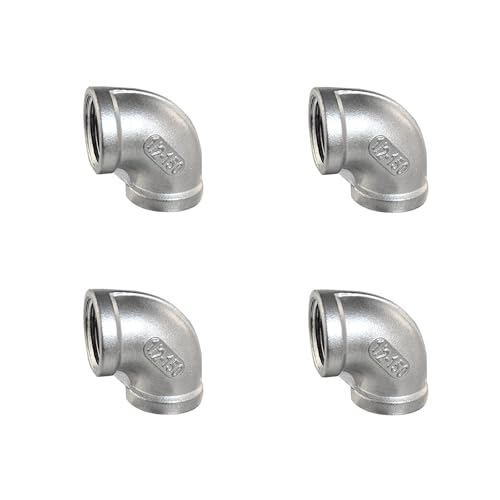

Different applications necessitate distinct connection methods. For sanitary systems, a ferrule fitting designed for Tri-Clamp connections, such as the DERNORD 304 Sanitary Fitting, is typical, requiring a precise weld to the tube for a seamless, crevice-free interior. For general plumbing and industrial decor, fittings like the GeilSpace 304 Stainless Steel Elbow offer versatility with both NPT threaded and weld-on options, allowing for either mechanical or permanent fusion connections. Structural applications often rely on mechanical fasteners; Ulifestar and YIDU69Q provide slip-on or screw-fixed connectors specifically for square tubing, simplifying assembly and disassembly without the need for welding equipment.

Size and Dimensional Compatibility

Accurate sizing is critical to ensure a proper fit and secure connection, preventing leaks or structural instability. Users must verify both the outer diameter (OD) and inner diameter (ID) for round tubes, or the side length for square tubes. For instance, the DERNORD sanitary ferrule specifies a '102MM/4" Tube OD,' which must precisely match the existing tubing. Similarly, fittings like the GeilSpace elbow are designed for standard '1/2" NPT threaded pipes,' demanding careful attention to thread type and size. For square tube connectors from Ulifestar or YIDU69Q, confirming the exact dimensions like '20 * 20mm' or '2" x 2"' is essential to avoid loose or incompatible joints.

Installation Method and Required Expertise

The installation method significantly influences the complexity and tools required. Weld-on fittings, exemplified by the DERNORD sanitary ferrule and implicitly by the GeilSpace elbow when used in a welded configuration, demand specialized welding equipment and skilled operators to achieve a strong, leak-proof joint. This method typically results in a permanent connection. Conversely, products like the Ulifestar Square Tube Coupler or YIDU69Q Square Tube Connector feature perforation-free or pre-punched designs that allow for screw-fixed assembly, simplifying installation and enabling easier disassembly or modification without the need for welding. The XiyaxiVici hollow threaded tubes also rely on M4 screws, highlighting a non-welded, mechanical fastening approach.

Incorrect Material Selection for the Environment

A frequent error involves selecting a fitting material that is incompatible with the operational environment. For instance, utilizing galvanized square tube fittings like those from Ulifestar in highly corrosive chemical processing or marine settings, where a DERNORD or GeilSpace 304 stainless steel fitting would be more appropriate, can lead to premature failure and costly repairs. Understanding the specific corrosive agents, temperature ranges, and hygiene requirements is crucial before making a material choice.

Mismatching Connection Types and Tube Geometries

Users often overlook the fundamental differences in connection types and tube shapes. Attempting to use a sanitary clamp ferrule designed for round '4" Tube OD' like the DERNORD fitting with square tubing, or vice-versa, will result in an unworkable connection. Similarly, square tube connectors from YIDU69Q or Ulifestar are exclusively for square profiles, making them unsuitable for round pipes that would typically use NPT threaded or welded elbows like the GeilSpace product. Always verify the tube's outer diameter, inner diameter, or side length against the fitting's specifications.

Overlooking Installation Method Requirements

The required installation method is another common oversight. Weld-on fittings, such as the DERNORD sanitary ferrule, demand specific welding expertise and equipment. Trying to force a mechanical connection or using inadequate welding techniques will compromise the integrity of the system. Conversely, for screw-fixed connectors like the Ulifestar or YIDU69Q square tube joints, ensuring the correct screw size (e.g., '#10 screw' for YIDU69Q) and proper tightening torque is essential to prevent loosening and structural instability.
